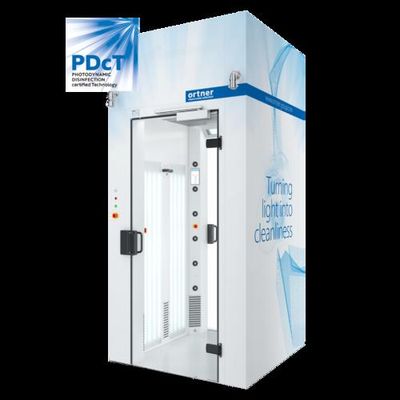

Ortner - Model PDc -Personnel Air Lock
Safe disinfection of surfaces with light and dyes, Human risk factor. Humans pose the greatest risk of contamination. Conventional personnel air showers are designed exclusively for cleaning off particles and as barrier systems between cleanroom classes. Scientific studies confirm the very low cleaning efficiency of traditional products, techniques and processes from various manufacturers.
The Ortner PLUS
- High decontamination and cleaning action with one passage through airlock
- Personnel decontamination without endangering the person
- Microbiological germ reduction of up to 98%
- JET nozzle impulse produces targeted vibrations on the textile and optimizes the cleaning effect
- Visualization of the airlock process inside the lock
PDc technology as an absolute innovation: the Ortner PDc personnel air shower is a highly effective, certified personnel air shower with a JET nozzle technology for physical cleaning of particles and a photodynamic disinfection technique to minimize microbiological contamination.
The new photodynamic technology (PDc) patented by Ortner represents an absolute innovation in the field of safe and effective decontamination of persons.
- Cladding : S 235 ELO RAL 9016
- Electrical connection data : 400 VAC/ 50 Hz/ 10 A
- Compressed air : 6 bar oil-free
- Compressed air consumption : Approx. 200 l/ cycle
- Nozzle outlets : 24 pieces
- Door locking : E-door opener
- Doors : 2 all-glass doors ESG
- Door clearance : W x H 800 x 2000 mm
- Door hinge (freely selectable) : DIN L (unclean) / DIN R (clean)
- Air outlet velocity : approx. 40 - 55 m/s
- Recirculation air volume : approx. 2000 m³/h
- Test device : aerosol test connections
- Recirculation filter / pre-filter : HEPA H14 filter / G3
- Signaling : Traffic light (red/green)
- Visualization : Touchpanel
- Control : Siemens
- Position monitoring : electronic proximity sensors
- PDc light source : 16 x 80 Watt, 4 x 14 Watt
- Disinfection performance : lower body approx. 80%, upper body up to 98%, average approx. 90% (IPA 2015)
- Particle cleaning performance : 15 - 25 µm approx. 50% / 50-100µm approx. 98% (IPA 2015)
- Cleanroom clothing / textile : Dastat K21-78-41-A2
- Weight : Approx. 700 kg
- Approx. 700 kg
- Stainless steel 1.4301 brushed outside, inside always 1.4301 and RAL 9016 coated
- High pressure fan system*
- Connection H2O2 gassing
- Additional airlock direction
- Remote maintenance
- Potential free contacts
- Compressed air storage
- Sensors foot position
