PET - Model Phoenix Series -Heavy Duty Extrusion Blow Molders

There are 5 basic models of Phoenix, but special sizes and variations are available by request.

Most popular related searches

Take-out of product through middle machine to 1 or 2 sides (choice) - Robot Arm System.
Controller Siemens Simatic S7, 100 sets of storage for molds.
Parison Control Siemens 50Pt or 100Pt (choice).
Deflash Top, handle, bottom included.
Conveyors Through middle for finished bottles. Scrap conveyor underneath, then onto grinder conveyor up to mouth of grinder.
Screen Siemens 7" touch screen standard.
Inverter Yaskawa, Japanese
Sensors and Relays Omron, Japanese
Hydraulic System Yuken, Japanese
Pneumatics Rexroth, Germany
Platform Automatic Lifting System
Die Head Chrome plated die head with torpedo design. 2 zone temperature control. 3 screw adjustment at front.
Clamp Massively constructed toggle system with balanced frame. Platen hook support.

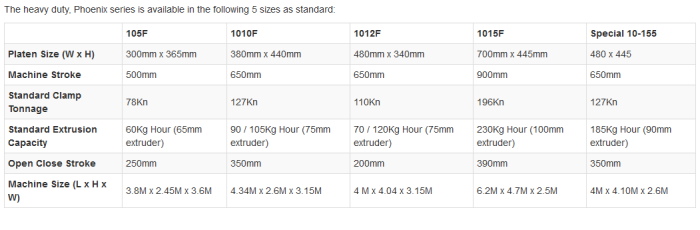

Technical Details
