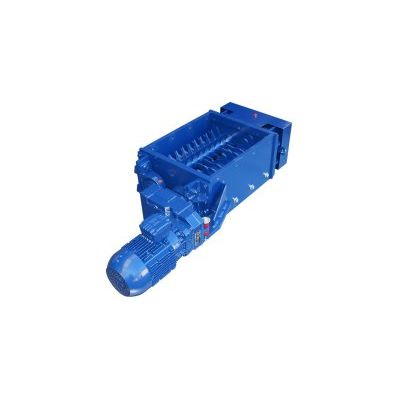

Wagner - Model 10 -PET Perforator
Perforators are used for slitting or piercing PET bottles or containers with 5 litres at full capacity. This process enables the production of compressed bales with higher density and compactness. There are three construction models available that achieve a throughput ranging from 450 to 2,400 kg per hour.
The PET bottles drop continuously onto the two shafts equipped with wipers which move in opposite directions; these are equipped with easily exchangeable slitting tools. Then the bottles are absorbed and pierced. The bottles are pushed downwards by the shafts and subsequently positioned into the designated container or carried to the press.
- 100 % pierced bottles
- high availability and longevity
- low and simple maintenance
- add-on system construction, hence adjustable to the customer`s individual situation
- in the sorting shaft
- in the compression bale shaft
- on pressing containers
- stand-alone machine
A great variety of transport options, to and fro, special funnel shapes and various interchangeable machinery base frames enable their perfect adjustment to the specific needs.
Control System:
- emergency-stop-device
- selector switch, automatic/manual
Slitting Tools:
- various tools made of hardox are available, multi-usage because they can be resharpened
- the tools are applied to a shaft, each of them is individually exchangeable
- the machine, being constructed in a segment system, is bolted together which allows for quick and easy tool exchange
Bearing Unit:
- proven solid
- free-running, as a consequence it is resistant to dust and contamination
Drive:
- high performance quality drive
- the gears are elastically embedded in rubber buffers
- when exchanging the tools, the drive’s withdrawal sleeve enables easy removal
Technical Data:
- Length: 1360 mm
- Width: 610 mm
- Height: 300 mm
- Drive power: 2,2 kW
- Weight: ca. 325 kg
