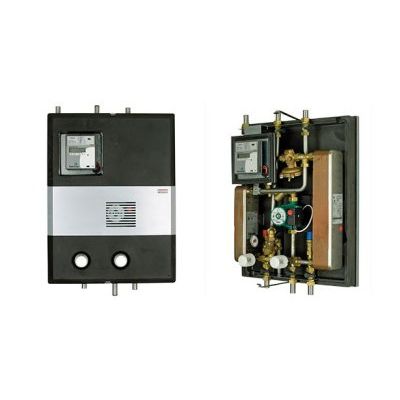

pewo - Model Therm IDD -Consumer Unit
Consumer substation with integrated indirect space heating circuit, suitable for local micro heating networks. pewoTherm IDD is a heating substation with an indirect heating circuit and domestic hot water preparation by the hygienic continuous flow principle and using a plate heat exchanger. The TFS controller keeps the water temperature constant. The high thermal length of the plate heat exchanger guarantees high tap output at low return temperatures. A plate heat exchanger separates the heating circuit from the heating system. The heating circuit is supplied by an integrated circulating pump. An optional expansion vessel for the heating circuit can be added on the left-hand side of the system. The flow temperature of the heating circuit can be controlled by a thermostatic TFS controller (fixed value) or by an electronic controller controlled by atmospheric conditions.
Basic module
- PST - pewoSandwichTechnology - polyurethane foam frame and heat insulation in one piece
- housing cover, heat-insulation polyurethane foam with a powder-coated steel faceplate
- stainless steel piping, flat sealing
- brass fittings and joints, flat sealing
Primary side
- ball valve in flow/return
- strainer
- adapter for differential pressure controller
- adapter for heat meter
- sensor pocket for heat meter
Heating circuit 1
- Stainless steel plate heat exchanger for separation of systems
- TFS temperature control system, fixed value setting 50-70 °C
- Circulation pump for heating circuit supply
- ball value in flow/return
Domestic hot water heating
- Stainless steel plate heat exchanger
- TFS temperature control system, fixed value setting 45-60 °C
- water hammer arrestor in the domestic hot water circuit
- flow controller in the cold circuit
Optional extras
- Differential pressure controller, mounted on-site
- room temperature controller, choice of mains-operated of battery operatec
- electric heating circuit module
- radio module for heat meter
- remote meter reading system
- 12 l expansion vessel with connection
