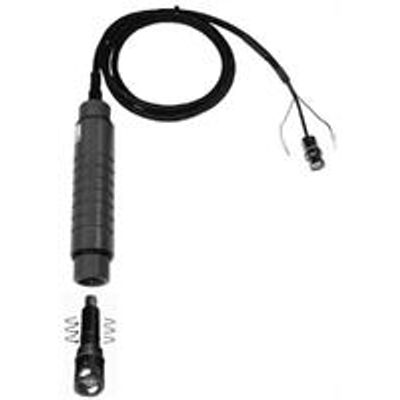

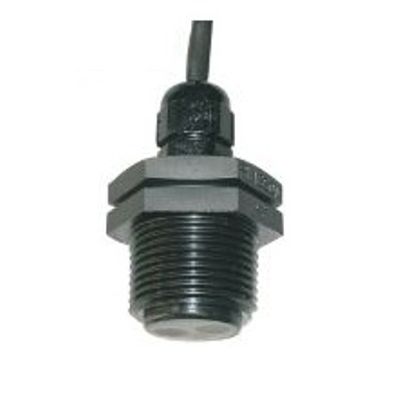

AIC - Model P-K -Conductivity Cell with 5m Attached Cable
["he TPBS cells are available in probe constants of 0.1 andl.O. The 5m cable is integrated into the encapsulated :ell. This low cost cell is ideal for installation into plastic flow lines and is commonly used in water purification iystems. The electrodes are made from high density carbon.
The standard inbuilt temperature sensor is an PtlOO RTD which is compatible with AIC conductivity monitors. Other sensor types may be available to order. The maximum operational temperature of the these cells is 50°C and the maximum operating pressure is 7 bar. The cell body is moulded from polypropylene to ensure high strength and excellent electrical resistant properties. The sensor is epoxy filled to prevent leakage of the measured sample into the cell body.
The cell is available in K=0.1 and K=l cell constants.
The measuring range of each of these cell constants (when used with AIC conductivity meters) is:
- K = 0.1 conductivity from 0 to 1,250 uS/cm
- K = 1.0 conductivity from 10 to 12,500 uS/cm
Wiring colour code:
- Red - temperature sensor, Green (or Black) - temperature sensor
- Yellow (or white) - conductivity electrode, Blue - conductivity electrode
- Temperature range: Up to 50°C
- Pressure: Max. 7 bar
Order Codes:
P-K=0.1TBPSRT5M - for cell K=0.1, f " BSP/NPT thread, PtlOO RTD temperature sensor, 5 m cable P-K=1.0TBPSRT5M - for cell K=1.0, f " BSP/NPT thread, PtlOO RTD temperature sensor, 5 m cable
