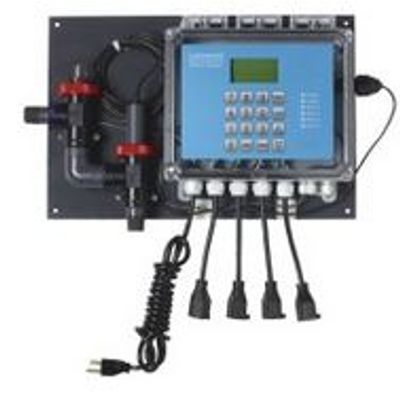

Lakewood - Model 1520/30e -pH or ORP Cooling Tower Controller
The Model 1520/30e uses the latest in microprocessor capability, giving the user a high level of application flexibility in pH or ORP control. The user in the field can configure this controller to operate as a pH or an ORP controller. A large illuminated graphics screen, multiple inputs, and very easy setup characterize this new technology. Water meters, sensors and plumbing assemblies are purchased separately.
Most popular related searches
cooling tower
pH/ORP controller
ORP controller
cooling tower system
water meter input
cooling tower control
water metering
water meter
flow switch
ORP sensor
- Removable power cord and receptacles for simple conduit installations.
- Scheduled feed, which can use three relays for biocides or other chemicals.
- Two (2) water meter inputs, two (2) drum switch inputs, pH or ORP input, flow switch input, and 4-20 mA output are all standard features.
- Designed with a single circuit board for better reliability and lower cost.
- Large open shallow enclosure for easy wiring.
- Heavy-duty stainless steel domed numeric keypad and illuminated graphical display allow for quick and easy programming. Steel domed switches improve the tactile sensing and life expectancy of the keypad.
- LED indicators for power, alarm and relay status.
- Easy to program with the Lakewood plain English, intuitive, and user friendly menu interface.
- Controller can be removed from a cooling tower and be placed in another type of application when used with the appropriate pH or ORP sensor.
- Single circuit board design improves reliability.
- No add-on options. 4-20 mA output and biocide features are standard.
