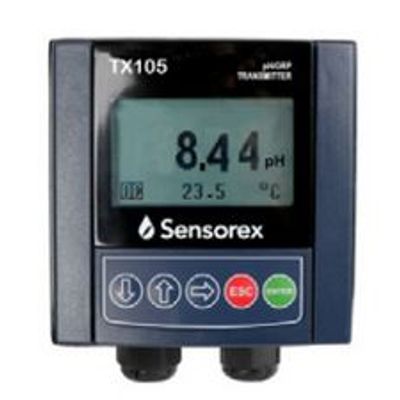

Sensorex - Model TX105 - 4-20mA -pH/ORP Loop Powered Transmitter

• Reliable pH/ORP monitoring
• Simple sensor calibration
• Automatic sensor maintenance alerts
• Compatible with a wide variety of Sensorex pH/ORP sensors
• One year limited warranty

Note: Transmitter is only compatible with sensors with tinned leads.

Description

Our TX105 is a fully-featured ORP/pH transmitter for use with pH and ORP sensors. The large display shows pH/ORP value simultaneously with temperature. Versatile mounting options for panel, DIN rail or pipe mount.

• Reliable pH/ORP monitoring: Proven technology for pH/ORP monitoring and 4-20mA output signal transmission
• Simple sensor calibration: Large display shows sensor data and aids in the calibration process
• Automatic sensor maintenance alerts: User-programmable sensor maintenance reminders help ensure your system always obtains accurate data
• Compatible with a wide variety of sensors: For use with all Sensorex combination-style pH/ORP sensors
• One year limited warranty: We stand behind all our products with the Sensorex Guarantee

Note: Transmitter is only compatible with sensors with tinned leads.

• Measurement Range (pH): 0.00 to 14.00pH, 0.01 pH resolution, +/- 0.01 accuracy
• Measurement Range (ORP/mV): -1999mV to 1999mV, 1mV resolution, +/- 2mV accuracy
• Temperature Range: -20 °C to 110 °C , 0.1 °C resolution, 0.2 °C accuracy
• Current Output Range: 2.00mA to 24mA, 0.01mA resolution, +/-0.005mA accuracy, 500V input/output isolation
• Enclosure: NEMA 4X IP65, ABS case with push-button control pad; HWD: 3.9” (99.1 mm) x 3.9” (99.1 mm) x 2.9” (74.7mm)
• Mounting Options: Panel, DIN rail, or pipe mounting
• Ambient Operating Temperature: 0° C to 60° C
• Storage Temperature: 10° C to 70° C
• Ambient Humidity: 0 to 95%, non-condensing
• Location: Designed for non-hazardous environments
• Maximum Sensor to Transmitter Distance: 30 feet (9.1 meters)
• Conduit Openings: 2 each 3/8″ NPT openings (cord grips included)
• Temperature Input: 2-wire Pt1000Ω RTD with automatic compensation
• Power Requirement: 12-24 VDC, max 600Ohm load
• Warranty: One year limited warranty
• Weight: Approx. 1lb (0.45kg)
