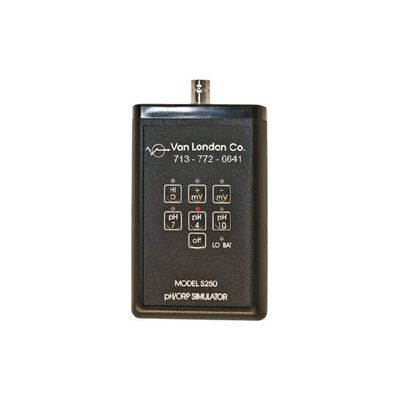

Van London - Model S250 -pH/ ORP Simulator

The S250 simulates the electrode output in the following manner:

• The pH settings include three pH/mV outputs: 4.01 pH (+177.4 mV), 7.00 pH (0 mV), and 10.00 pH (-177.4 mV).
• The ORP settings include two mV outputs: +700 mV and -700 mV.
• The simulator has a High Impedance 1000 Meg-W setting for simulating a pH/mV output to determine if there is a problem with the instrumentation, cabling or amplifier.
• The Model S250 is shipped with a 9V battery and a 3 foot BNC/Hanked (tinned) cable for connecting to various instruments. Optional cable connections are available. See below for list of cable connections.

• Water Resistant Push Buttons
• Selectable 1000 Meg-Ω Output Load
• Plastic Case
• LED Status Lights
• LED Low Battery Indication
• BNC Connector
• Simulates pH, mV, & ORP

• pH Settings: 4.01, 7.00, 10.00
• ORP Settings: +700 & -700 mV
• Accuracy: ±0.1%
• Output Impedance: 1000 Meg-Ω
• Power: 9V Battery
• Dimensions: 2½:W x 3¾"H x 15/16"D
