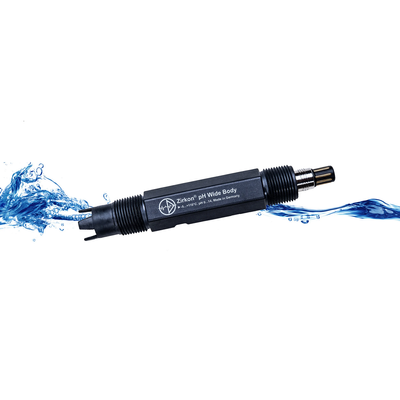

Kuntze - Model Zirkon -pH/ORP Wide Body Sensors

SHARE

Zirkon Wide Body Sensors feature a rugged design, manufactured to withstand highly demanding applications, such as high temperatures and pressures.

Most popular related searches
wastewater treatment system
process wastewater treatment
beverage water
process water treatment system
beverage water treatment
water treatment system
wastewater treatment
beverage water production
temperature monitoring
process water treatment

The Ryton® Body (PPS) can withstand harsh chemical environments and the large annular PTFE reference junction is resilient against blockages and fouling. The built-in double reference junction ensures a reliable and stable measurement, and the protection guard mechanically shields the sensitive sensor surface from debris and damage.

The ¾” molded NPT threads provide an easy installation and allow for submersion measurements. Built-in temperature measurement (Pt1000) and solution ground are available on demand, ensuring precise and reliable measurements. Zirkon® Wide Body sensors are available with common industry connectors (S8/Variopin) or pre-molded fixed cables, making them compatible with all Kuntze measurement devices and most industry pH-meters.

  • Drinking Water
  • Food & Beverage
  • Process Water
  • Waste Water Treatment
  • Annular junction, designed to withstand tough industrial applications
  • Threaded connection ¾" NPT top and bottom for easy installation
  • Protection guard against electrode damage
  • Rugged Ryton® shaft for demanding chemical environments
  • Molded sensor cable suitable for submersion applications
  • Built in Pt1000 sensor for temperature compensation
  • Solution ground for stable measurements in demanding applications
  • Molded sensor cable with BNC plug application



  • ORP: -1500 to +1500 mV
  • pH: 0 to 14

Process Conditions

  • Maximum Pressure: 10 bar at 20°C (145 psi at 68°F)
  • Minimum. Conductivity: 50 μS/cm
  • Temperature Range: -5 to 110°C (23 to 230°F)

Mechanical Construction

  • Junction: PTFE
  • Shaft Material: Ryton®
  • Shaft Length: 150 mm with protective guard
  • Shaft Diameter: Hexagon 26 mm
  • Electrode Material: Platinum Plate, AH-Glass
  • Reference System: Ag / AgCl / Solid electrolyte
  • Process Connection: ¾" NPT
  • Electrical Connection: S8 (2-poles), Variopin (8-poles), fixed cable 6 m, fixed cable 6 m with BNC plug
  • Temperature sensor: Pt1000, None
  • Installation Depth: 25 mm
  • Optional: Solution ground
