Tethys InstrumentspH Sensor Differential Probe

SHARE

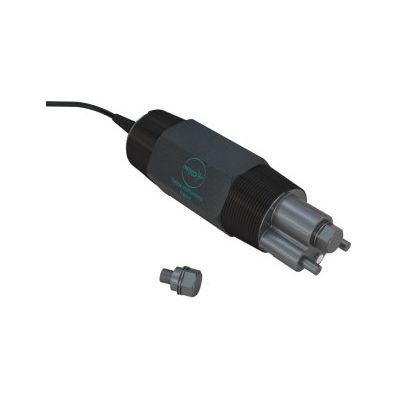

Tethys Differential pH Sensor with 1 ½”NPT thread on both front & back is a heavy-duty pH probe with Ryton Polyphenylene Sulfide body suitable for many industrial water application. The differential design provides unsurpassed accuracy by virtually eliminating ground loops. Mounting thread on both front and back allow for in-pipe (continuous measurement) or submersible installations of pH Sensor. You can replace the salt bridge and refill the reference solution to keep pH electrode working longer. This pH sensor offers excellent chemical resistance for harsh application.

Most popular related searches
  • Industrial waste water treatment plant
  • Drinking water treatment plant
  • Other process water application
  • Municipal waste water treatment plant
  • Surface water application
  • pH Range: 0-14 pH
  • pH Sensor Type: Differential pH sensor
  • Body Material: Ryton @PPS body
  • pH stability (per 24 hour): 0.03 pH
  • Mounting: Immersion or In-Line
  • Temperature Range: 0-85 °C
  • Temperature Element: 10K NTC
  • Temperature Compensation: Automatic
  • Maximum Pressure: 100 psi
  • Integral Sensor Cable Length: 6 meter
  • Mounting Thread on Sensor Body: 1 ½” NPT threads, front & back
  • ELPH-D:
    • pH online electrode, differential sensor
    • Range: 0-14
    • 6 meters of cable length
    • Built-in ATC RTD 100 ohm
  • ELPH-D-S: Replacement salt bridge for differential pH Sensor
  • ELPH-D-R: Refill solution for standard cell, 125 mL
