Phantom - Model I-1650 USV -Remote-Controlled Boat - Remotely Operated Vehicles

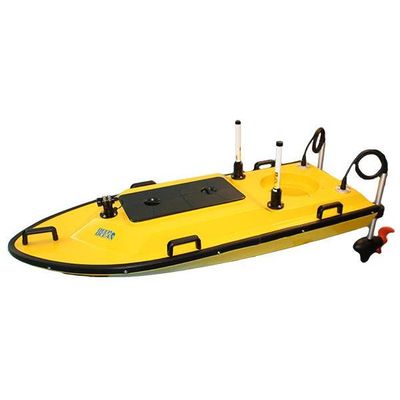

A powerful 1.65m remote controlled boat. The Phantom I-1650 USV is a powerful, 1.65m, remotely controlled, battery-powered unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry and discharge with ADCPs (Acoustic Doppler Current Profilers).
Most popular related searches
remote-controlled boat
acoustic doppler current profiler
acoustic doppler current profiling
unmanned surface vessel
doppler current profiling
doppler current profiler
unmanned surface vehicle (USV)
unmanned surface vehicle
acoustic doppler profiler
carbon fiber

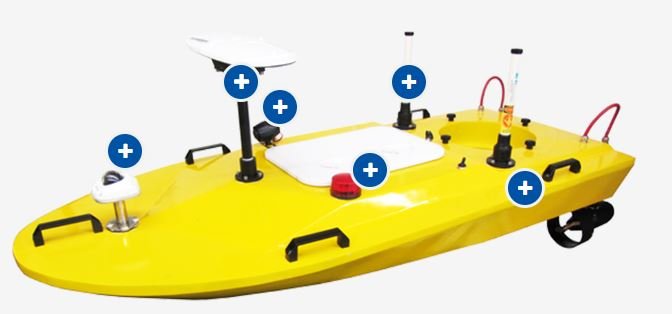

The Phantom® I-1650 USV is a powerful, 1.65m, remotely controlled, battery-powered unmanned surface vessel designed and manufactured by Deep Ocean Engineering to conduct measurements of currents, bathymetry and discharge with ADCPs (Acoustic Doppler Current Profilers).
- Utilizes 2 Torqueedo thrusters
- Range of up to 2km distance with RC (extended with mission planning software and GPS)
- Spacious and accessible electronics compartment
- Portable and easily deployable vessel
- Hand-built with a rugged, lightweight hull constructed of carbon fiber
- One-year manufacturer’s warranty
- IP HD camera
- Ethernet and serial channels
- Modular design
- Integrated moon pool for sensor integrations
- Water quality surveys in contaminated waters
- Bathymetry
- Discharge monitoring
- Scientific research
- Lake and river surveys
- Harbor inspections
- Port security
- Top Speed : 1.8m/s (4mph)
- Survey Speed : 1.3m/s (2.9mph)
- Payload : 20kg (44lbs)
- Battery Life @ Top Speed : 1.5hrs +
- Battery Life @ Survey Speed : 4hrs +
- Weight : 36kg (80 lbs)
- Length : 1650mm (5.41ft)
- Width : 695mm (2.28ft)
- Chassis : Carbon Fiber or Non-Corroding Aluminum Alloy
