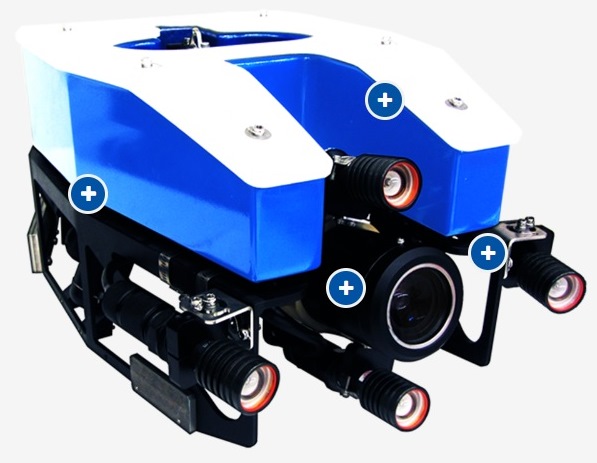

Phantom - Model P-150 -Portable ROV Systems
Stable, highly maneuverable confined spaces platform for pwr outage support and visual exams. The Phantom P-150 is a portable system designed for PWR visual exams of staged reactor equipment, NDT support, FME identification/retrieval and many other outage exams (please see Applications, below). Analog ROV configuration permits easy fault detection and plug/play integration of accessories. The Phantom® P-150 is ideally designed for the nuclear industry with stable materials and FME concerns as a top priority.
The Phantom P-150 operates with the NIS-300 Control System; A portable system designed to be backwards compatible with existing P-150 ROVs and allow plug and play configurations for both radiation tolerant and HD 1080P video options. NIS-300 also supports unique thruster configurations and cable lengths up to 500 feet.
- Portable system, adept at weld visual exams/ NDT support and small-object-retrieval
- The P-150 open design allows easy integration of additional sensors and cameras
- Two horizontal and two “vertrans” thrusters
- No electronics in the sub unit ensures reliability in areas of high radiation
- Hardwired for fast and easy integration with accessories and easy fault-detection
- 3 coax umbilical: l permits HD 1080 video imagery or 2 continuous cameras operation
- 4 x 160 Watt LED lighting option available on the 2 lighting circuits
- Plug and play radiation tolerant camera options
- Upper and Lower Internals, lifts and visual examination
- RWST visuals
- Small object identification and retrieval
- Support of Tri-nuke vacuuming operations, both flange and vessel floor
- Vessel inlet and outlet visual exams
- Vessel Flange pre/post cleaning visual examination
- The most stable video platform of its size
- Designed for nuclear industry with stable materials and FME concerns as a priority
- Potable water tanks, both elevated and in ground, with umbilical lengths to 500’
- 48 volts DC motors, driven at around 60VDC
- Individually controlled
- Mineral oil filled compensator on shaft seal
- Weight: : 18 kg (40 lbs)
- Length : 64.25cm (25.30 in)
- Width : 35.24cm (13.875 in)
- Height : 29.21cm (11.5 in)
