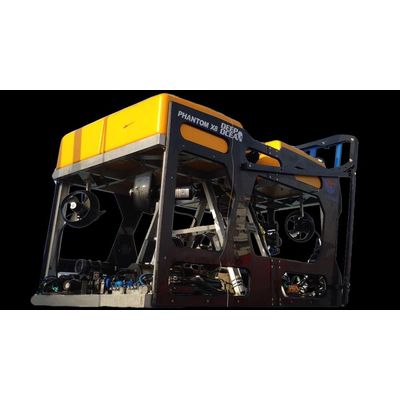

Phantom - Model X-Series -Deep Sea Remotely Operated Vehicles Systems (ROV)
The Phantom X-Series is a commercial ROV System, characterized as an electric, light work-class, vehicle that packs a robust design for deep sea maneuverability and power. Configured with six vectored horizontal and two vertical Tecnadyne brushless thrusters, the Phantom® X8 has complete control and authority in any given direction, even in the toughest currents.
It is hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame that accommodates heavier payloads and allows the integration of a wide variety of sensors and upgrades. Designed with offshore operations in mind, the Phantom® X-Series is adaptable for various underwater tasks in any condition.
Applications for the X-Series include pipeline inspection/routing, offshore wind farm maintenance, infrastructure repair, survey, research and many more.
The advanced technology of the Phantom ® X-Series ROV platform provides powerful maneuverability, incorporates an open architecture, integrates with a wide variety of sensors and is hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame that can accommodate heavier payloads.
- Powerful maneuverability
- Incorporates an open architecture
- Integrates with a wide variety of sensors
- Hand-built on a rugged, resilient, non-corroding polypropylene chassis over an aluminum frame
- Chassis accommodates heavier payloads
- HD camera (1920x1080) standard with rear fixed camera
- Capable of white balance and advanced image adjustments
- Front mounted on mechanical pan/tilt unit =(+/-90°)
- 3 Front facing LED lights (30,000 lumens)
- Adjustable LED brightness controlled by the handheld pilot box or GUI software with integrated video recorder and stills capture
- Control van
- Additional Cameras & Lights
- Sonars
- Navigational software (Greensea)
- Umbilical (900m standard)
- Manipulators
- Launch and Recovery System
- Configuration : 6 vectored horizontal, 2 vertical
- Forward Thrust : 588kgf (1296 lb)
- Vertical Thrust : 198kgf (437 lb)
- Thrusters : 2.2 kW Tecnadyne magnetically-coupled brushless
- Weight in Air : 1200 kg (2646 lbs)
- Length : 2451 mm (96.5 in)
- Width : 1420 mm (55.9 in)
- Height : 1448 mm (57 in)
- Depth rating : 850 m working depth
