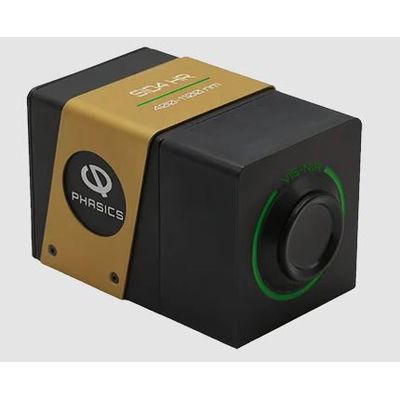

Phasics - Model SID4 HR -High Resolution Wavefront Sensor

SHARE

The SID4 HR brings ultra-high phase sampling (416 x 360) and high dynamic range (500 µm PV) to the most demanding wavefront measurement applications. Its large aperture and extreme wavefront sensitivity makes it perfectly suited to direct measurement of large diverging beams without relay optics.

Most popular related searches
optical metrology
optical metrology system
VIS-NIR
metrology
laser optical
metrology system

VIS - NIR (400 - 1100 nm)

  • Very high resolution (416 x 360 phase pixels)
  • Large analysis pupil: 9.98 x 8.64 mm²
  • Direct measurement of high NA beam up to 0.8

Laser testing, adaptive optics, and plasma diagnostics • Optics metrology and optical system alignment • Material inspection •

Wavelength range: 400 - 1100 nm
Aperture dimension: 9.98 x 8.64 mm²
Spatial resolution: 24 µm
Phase and Intensity sampling: 416 x 360
Resolution (Phase): <2 nm RMS
Accuracy: 20 nm RMS
Acquisition rate: 10 fps
Real-time processing frequency*: 2 fps (full resolution)
Interface: Giga Ethernet
Dimensions (WxHxL): 80 x 77.5 x 86.4 mm³
Weight: ~600 g
