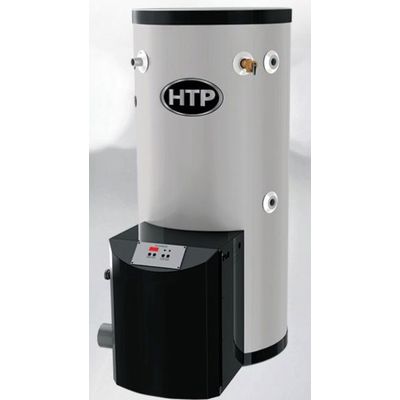

Phoenix - Water Heater

SHARE

The Phoenix is a highly efficient and extremely versatile gas fired water heater. It is manufactured with super durable stainless steel materials to last longer and provide optimum heat transfer. It is up to 96% efficient with a five to one turndown, making it Energy Star rated and a great choice for your heating needs.

Most popular related searches
water heating
energy star
low-NOx emissions
stainless steel tank
water sanitation
low-NOx
steel tank
NOx emissions
gas water heating
heated water tank

Energy Efficient

 According to Energy Star, heating water accounts for 15% of a home’s energy use. HTP high efficiency water heaters consume anywhere from 10-50% less energy than standard models. The Energy Star certified Phoenix water heater has up to a 96% thermal efficiency rating. This means that 96 cents of every dollar is used toward heating, compared to a standard efficiency unit, which at 60% efficiency means only 60 cents of every dollar goes toward heating. The Phoenix water heater’s modulating burner operates at a five to one turndown ratio, which provides high system efficiency even during low load conditions. This water heater also complies with SCAQMD Rule 1146.2 – ultra low NOx emissions – making it eco-friendly.


Versatility
The Phoenix is available in three gallon sizes (55, 80, 119) and four BTU inputs ranging from 100,000 to 199,000. It is suitable for both residential and commercial applications.

Quality Construction

The Phoenix is laser welded and constructed with a 316L stainless steel tank to resist corrosion and last longer. It is also manufactured with a hybrid cupronickel/stainless steel heat exchanger for ultimate heat transfer capabilities. It expands and contracts rapidly with the change in temperature, eliminating scale built up and promoting self-cleaning. The Phoenix is equipped with an outdoor sensor that auto adjusts for maximum efficiency. It is also created with 2” thick foam insulation for minimal heat loss!

A Better Experience with Every Installation

The Phoenix has a light weight tank for easier installation. It vents in inexpensive PVC and CPVC. Power vent or direct power vent options are available. These units come with intake PVC tee with screens and exhaust PVC coupling with screens. LP conversion kits are also included if needed (natural gas models only).

Solar and Sanitizer water heating options are also available with the Phoenix. The Phoenix Solar Gas Fired Water Heatersare the first modulating condensing solar water heaters with an integrated gas fired back-up all in one unit.

The Phoenix Sanitizer provides high temperature sanitation for those need to be clean applications. This is great for use in restaurants, breweries, wineries, dairies and more!
