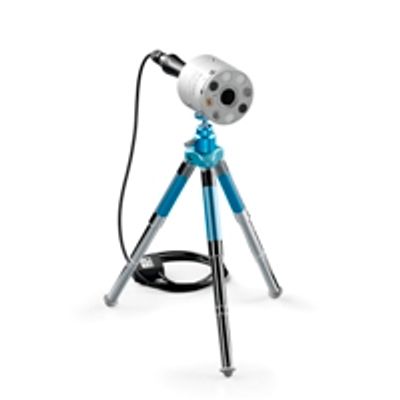

DELTA OHM - Model HD 2402 -Photo Radiometer Datalogger

HD2402 is a portable datalogger photo-radiometer for the measurement of noncoherent optical radiations in accordance with 2006/25/CE European directive and legislative decree No 81 of 9 April 2008. The instrument consists of a series of sensors used to cover the different portions of the spectrum and of a small LASER used to point the analyzed source. The different sensors operate in the following spectral ranges: • Photometric sensor for the measurement of illuminance (luxmeter) in the spectral range 380÷780 nm. • Radiometric sensor for UV band (220÷400 nm) with spectral weight factor S(λ). • Radiometric sensor for UVA band (315÷400 nm). • Radiometric sensor for 400÷700 nm (blue) band with spectral weight factor B(λ). • Radiometric sensor for IR band (700÷1300 nm) with spectral weight factor R(λ). • Thermopile sensor for the measurement of infrared radiance, 400÷2800 nm spectral range.
