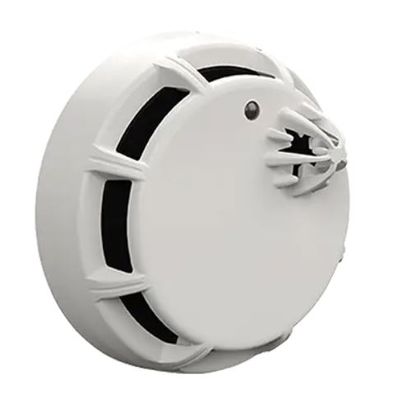

Cease Fire Potter - Model PAD 200-PHD -Photoelectric Smoke Detector with Base
FromCease Fire LLC
The PAD200-PHD is a listed Analog Addressable smoke sensor and a rate of rise and/or fixed temperature heat sensor compatible with fire alarm control panels that utilize the Potter Addressable Device (PAD) protocol.
Most popular related searches
smoke detection system
fire alarm control panel
fire alarm control
photoelectric smoke detector
smoke sensor
fire alarm
fire control panel
fire alarm panel
temperature sensor
heat detector
The PAD200-PHD is a low profile smoke/heat sensor with a wide sensitivity range. The heat sensing portion utilizes a proven thermistor for accurate and reliable heat detection. The sensor and base (not included) are made of a durable plastic in an off-white color to blend in with the ceiling.
- Operating Voltage 24 VDC
- Detector Current Draw 300
- Alarm indicator 1
- Alarm set-point range for Smoke 1.1% - 3.5%
- Alarm set-point for Heat 135°F
- Installation temperature range 32°F to 120°F (0°C to 49°C)
- Operating relative humidity range 0% to 93% (Non-condensing)
- Start-up time Max. 1 sec.
- Maximum number of addresses per loop 127
- Maximum number of lighted indicators in alarm per loop 30
- Coloreggshell White Weight (without base) 3.6 oz
- Dimensions (without base) Height: 1.94 in (49mm)
- Diameter 3.93 in (100mm)
