The Neutralox Photoionisation system is a highly effective alternative odour control process compared to biofilters and chemical scrubbers with lower capital costs and simple operation. The NEUTRALOX new generation of odour control utilises UV light and catalysts to break down odourous compounds in air in a highly efficient and compact process called Photoionisation.

The NEUTRALOX® Photoionisation process is a physical-chemical off-gas treatment process for control of odours originating from waste, sewage and sludge- treatment processes. The technology is essentially based on the application of UV-light and catalysts.

In addition to odour reduction, extensive air disinfection is also provided with the photoionisation treatment process.

The NEUTRALOX® Photoionisation process

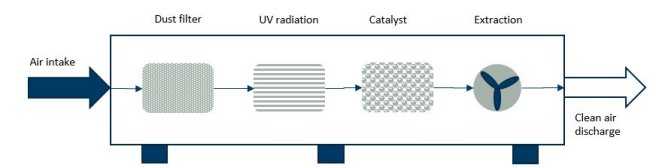

The raw untreated gas first passes through a dust filter which is contained in an easily accessible compartment of the system. The dust filter pressure drop is controlled by a pressure gauge mounted at the unit which will activate an alarm when it requires cleaning or replacing. The off-gas then passes through the UV-compartment where UV-light initiates catalytic enhanced chemical reactions which result in significant reduction of odour.

The linkages of odour molecules are broken-up by the UV-light and the reaction between UV-light and naturally occurring constituent within the air also creates additional oxidants to further degrade or otherwise eliminate odours. The reaction is enhanced by photocatalysts. The catalyst provides further degradation of odorous compounds and prevents the release of oxidants into the atmosphere.

The downstream fan ensures extracting the polluted air from the odour source by keeping the whole system under negative pressure conditions.

The NEUTRALOX® Photoionisation system assembly

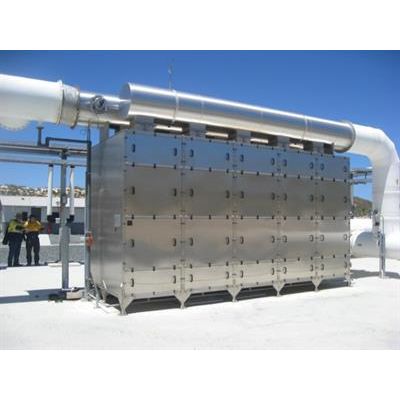

NEUTRALOX® Photoionisation units are of modular build-up to allow future expansion. The Photoionisation units are delivered as compact pre-mounted units which minimises installation demand at site.

NEUTRALOX® Photoionisation units essentially consist of housing, dust-filter, UV-compartment and catalysts.

The housing is manufactured of stainless steel (AISI 304 or AISI316 – depending on local requirements). The housing consists of an insulated double wall (sandwich build-up) suitable for the respective environmental conditions. All components are easily accessible from the front and/or back side through removable maintenance doors.

  • Effective treatment of all odour substances (not only H2S)
  • Effective treatment of high odour concentrations
  • Effective treatment of varying odour concentrations
  • High treatment efficiency (99,x%)
  • Low investment costs (small footprint, small foundation, no peripheral equipment)
  • Low operational costs: only electricity required for operation
  • Low maintenance costs: exchanging consumables only every 1-2 years
  • Switch ON – switch OFF technology- operates immediately
  • Flexible installation: units may be installed indoors or outside
  • Minimal footprint.
  • Fully automatically operation.
  • Very low power demand
  • Ex rated systems are available
