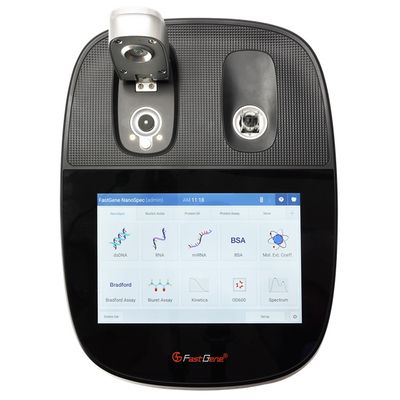

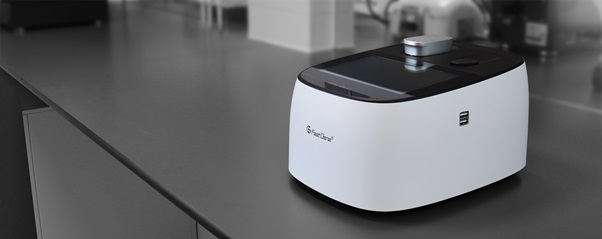

Nippon  FastGene® NanoSpec - Model FG-NP01 -Photometer for All-Round Microvolume Spectrophotometer

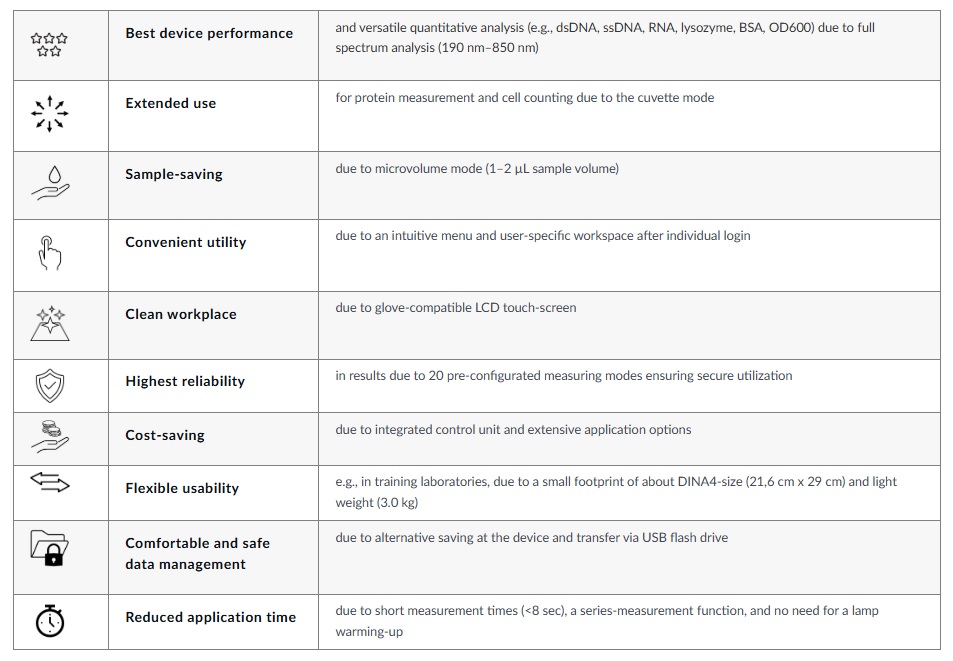

Full spectral analysis

The FastGene^® NanoSpec measures the absorption spectrum UV-VIS (190 nm–850 nm) in seconds using by array type spectrophotometer technology with Xenon lamp and CMOS sensor (2048 pixels).

Measurement modes and configuration

The designated factor of each of the 20 pre-configurated measurement modes is set as the default value, so that no adjustment is needed.

• Nucleic acids: dsDNA | ssDNA | RNA | miRNA | Customize*

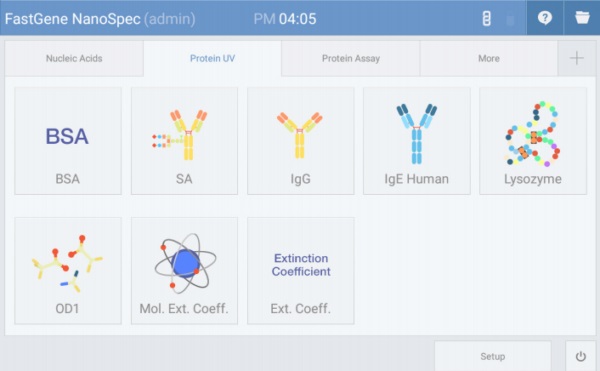

• Protein UV: BSA | SA | IgB | IgE Human | Lysozyme | OD1 | Mol. Ect. Coeff. | Ext. Coeff.

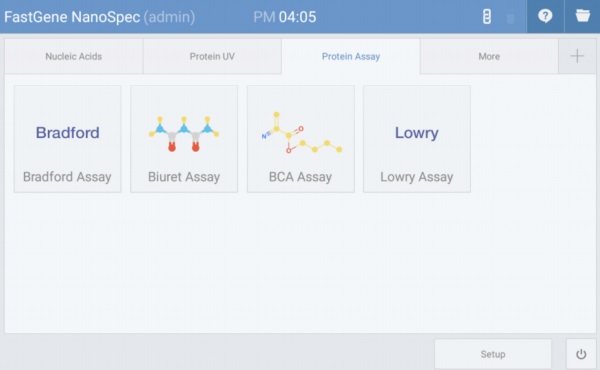

• Protein assay: Bradford | Biuret Assay | BCA Assay | Lowry Assay

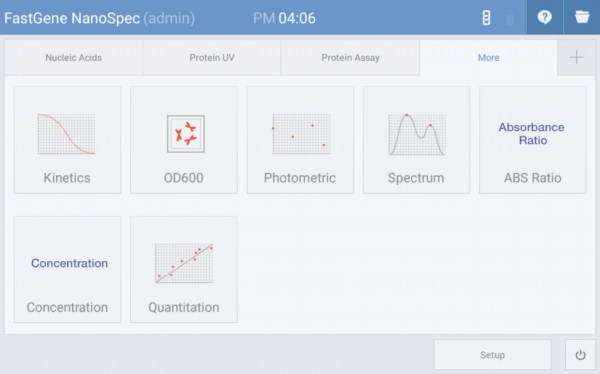

• More: Kintetics | OD600 | Photometric | Spectrum | ABS Ratio | Concentration | Quantification

*The input mode (‘Customize’) is provided to allow the users to set a factor value which is different from the default to enable maximal flexibility and specificity.

Software and menu navigation

The menu navigation of the FastGene^® NanoSpec is very simple and intuitive. The >20 preconfigurated measuring modes can directly be selected.

The input mode (‘Customize’) is provided to allow the users to set a factor value which is different from the default.

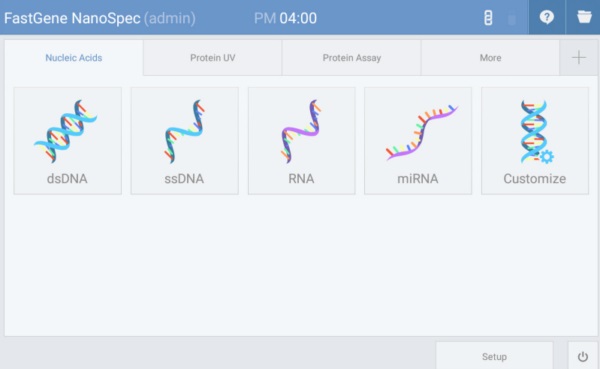

Nucleic acid tab:

Specification

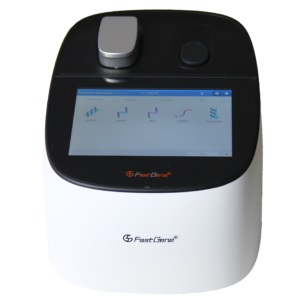

• FastGene® NanoSpec Photometer

General specifications

• Photometric system: Microvolume spectrophotometer
• Footprint (W * D): 216 mm x 290 mm
• Weight: 3.0 kg

Optical specifications

• Detector: CMOS linear image sensor (2048 pixels)
• Light Source: Xenon flash lamp
• Lifetime: ~ 10 years
• Wavelength range: 190 – 850 nm
• Measurement time: < 8 seconds
• Spectral bandwidth: 1.5 nm (FWHM at Hg 253.7 nm)
• Wavelength display (setting): 1 nm
• Wavelength accuracy: ± 1 nm
• Absorbance precision: 0.002 AU (0.5 mm path) or 1 %
• Absorbance accuracy: 3% (at 0.97A at 302 nm)

Processing / Power / Software:

• Software compatibility: Windows® 10 and 11
• CPU: Octa Core ARM® CortexTM-A53 Processor
• Storage: 32 GB internal storage
• Connectivity: 4 x USB-A ports, Ethernet, RS232
• Operating systm (OS): Android

Display

• Display: 7-inch, 1280 x 800 HD color display
• Touchscreen: Multipoint capacitive touch
• Glove compatibility: Compatible with lab gloves

Microvolume performance

• Minimum sample volume: 1 µL
• Absorbance range: 0.04 – 330 A (10 mm equivalent)
• Detection limit (microvolume):
• 2 ng/μL (dsDNA)
• 1.6 ng/µL (RNA)
• 0.06 mg/mL (BSA)
• 0.03 mg/mL (IgG human)
• Maximum concentration:
• 16500 ng/μL (dsDNA)
• 13200 ng/µL (RNA)
• 495 mg/mL (BSA)
• 244.2 mg/mL (IgG human)
• Pathlength: 0.05 – 0.7 mm

Cuvette performance

• Photometric range: 0.004 – 2 A
• Detection limit:
• 0.2 ng/μL (dsDNA)
• 0.16 ng/µL (RNA)
• 0.006 mg/mL (BSA)
• 0.003 mg/mL (IgG)
• Maximum concentration:
• 100 ng/µL (dsDNA)
• 80 ng/µL (RNA)
• 3.00 mg/mL (BSA)
•  1.48 (IgG)
• Center height: 8.5 mm

Additional accessories:

• Thermal printer for FastGene® Photometer: Cat. No. YJ-360T(S) | 1 printer and 1 roll paper | Please contact us for more information.
• Thermal roll paper: Cat. No. CSM0026 | Pack of 20 rolls | Please contact us for more information.
