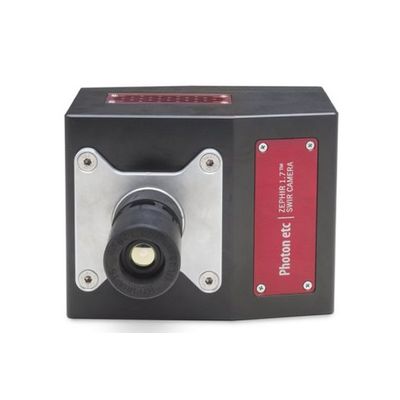

Photon ZEPHIR - Model 1.7 -Infrared Camera
FromPhoton Etc.
ZephIR™ 1.7 is Photon etc.`s affordable science-grade near-infrared InGaAs camera, highly sensitive from 0.9 to 1.7 µm. A four-stage TE cooler, deep-cooling at -80°C, allows reaching unrivalled low-noise levels even at an astounding 220 frame-per-second rate.
Most popular related searches
- 220 frame-per-second
- 4-stages TEC
- Low noise level
- InGaAs FPA
- Optimal from 0.8 to 1.7 µm
- FOCAL PLAN ARRAY (FPA): InGaAs
- FPA SIZE: 640 x 512
- PIXEL SIZE: 15 µm
- SPECTRAL RANGE:
- ~ 0.8 - 1.69 µm @ 25°C
- ~ 0.8 - 1.62 µm @ -80°C
- DARK CURRENT: 300 ē/p/s
- GAIN SETTING (HIGH, LOW): 0.366 ē/ADU, 18.31 ē/ADU
- READOUT NOISE (HIGH GAIN, LOW GAIN): 45 ē, 180 ē
- QUANTUM EFFICIENCY: Up to 85%
- OPERABILITY (TYPICAL): > 99%
- FULL WELL CAPACITY (HIGH GAIN, LOW GAIN): 12 Kē, 600 Kē
- DYNAMIC RANGE: 13/15 bits
- FULL FRAME RATE: 350 fps (13 bits) or 120 fps (15 bits)
- INTEGRATION TIME RANGE: 1 µs to minutes
- READOUT MODES: ITR, IWR, LNIM
- COOLING: TEC 4 stages, forced air
- FPA OPERATING TEMPERATURE: -80 °C
- COOL DOWN TIME: 3 minutes
- AMBIENT TEMPERATURE RANGE: 0°C to 40°C
- COLD SHIELD: Yes
- COMPUTER INTERFACE : CameraLink™ (dual), USB3.0
- EXTERNAL CONTROL : IN/OUT TTL
- POWER SUPPLY REQUIREMENT : 12 VDC @ 5 A
- PHYSICAL DIMENSIONS : 169 mm x 130 mm x 97.25 mm
- WEIGHT: 4 Kg
