Piccolo - Model Hybrid+ -Dual Mode GPS Unit for Trailer Tracking

Main Features

• When powered by external power, the Piccolo Hybrid+ operates in real-time vehicle tracking mode sending GPS in high frequency for example every 30 seconds.
• Once power is disconnected, the Piccolo Hybrid+ switches to Asset Tracking (AT) mode sending data 1-2 times a day when parked ( user definable ),when movement/vibration is detected, the Piccolo Hybrid+ will automatically wake up send an alarm and for as long as the vibration continues will switch to report data at a more frequent interval (user-definable ) for example every 30 minutes.
• Auto alert when and where the external power is connected / disconnected.
• Easy to configure separate reporting intervals based on movement.
• When movement/vibrations are detected, the device can be configured to stay awake for the duration of movement and report in real-time.
• GEO Fence mode of operation - the unit can change the frequency of transmitting GPS when entering a pre-configured geo-fence
• Vibration sensor – for automatic security theft alarm and motion detection
• Tow Detection – the unit detects when the vehicle is tilting and/or moving
• When an event is detected, the Piccolo Hybrid+ is programmable to send an SMS alarm to mobile phones together with the current GPS coordinates.
• The current battery level is sent together with every message.
• Easily reconfigure the Piccolo Hybrid+ Over the Air ( OTA) or by sending SMS commands.
• OTA upgrade of new firmware.
• Fast charge from an external standard 12VDC wall charger via a waterproof connector.
• The Piccolo Hybrid+ is not just a hardware product, it`s a complete mobile solution packaged with: UDP or TCP/IP communication, flexible and comprehensive local and OTA user configuration tools, OTA diagnostics and API`s with various sample codes for simple Plug & Play integration into any 3rd party server.
• Extremely low power consumption achieved by innovative battery management to preserve battery life

Easy Installation

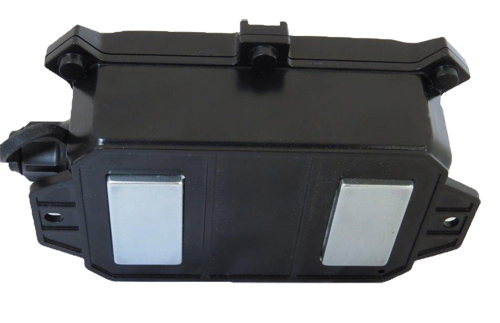

• Magnets - For easy installation on metal surfaces
• Two sided 3M Industrial tape- for a strong, permanent attachment
• Piccolo screwed to the asset

Optional Features

• Up to 6 external digital temperature sensors for refrigerated trailers
• 2 Digital Inputs for security alarm and /or status indication
• 1 Analog input
• CANbus J1939 or OBDII or J1708
• External Dual Antenna

Due to its Small Size and long up to 5 years battery life or up to 5000 GPS pings on a single charge the Piccolo Hybrid + is also an exceled cost effective solution for Container or Asset Tracker

Technical Specifications

• Network availability – GSM/GPRS or Edge/HSPA+(3G)
• Frequency Bands - Quad-Band (European 900/1800/2100, American 850/1900/2100)
• Enclosure ABSPC water proof IP67 enclosure, rated UL94V-0
• GPS – MTK 66 Channels
• Dimensions: 7.3” x 2.8” x 1.6” (185mm x 73mm x 41mm) without solar panel and bracket
• Weight: 9oz (255gr) without the batteries

Environmental Specifications:

• Operating Temperature: -4°F to 140°F (-20° to 60°C)
• Storage Temperature: -22°F to 158°F (-30° to 70°C)
• Charge temperature: 32°F to 113°F (0° to 45°C)
• Humidity: 0 to 99% 110F (40C), non-condensing
• Shock/Vibration/Mechanical: meets or exceeds EIA standard RS-316B 3G (operating), 20G (non-operating) XYZ 3 directions. Meets SAE J1455

Power source

• Operated by Rechargeable battery - the standard is one 4.2 VDC Lithium reparable battery pack with a capacity of 7800mA When fully charged has the capacity of transmitting around 5000 GPS position. The unit has an internal fast charger. The batteries are charged via an external of the shelf standard 6-24VDC regulated power supply wall powered (110-220 AC) that plugs into the unit via a waterproof connector. Optionally the unit can be charged from a car battery via the cigarette plug. The charge time is around 4-5 hours.

Electrical Specifications:

Current consumption from battery:

• standby mode: 40ma at 3V
• sleep mode: 45uA at 3V
• transmit mode: 1.8A pulse at 3V

Functional Specifications

• Digital inputs - optional up to two dry contact IO one input can make event on open loop detection that wakes up the unit and send an alarm
• Up to 6 external digital temperature sensors (optional)
• Analog Input - Optional 0-5V analog input, sensor powered by an external power source controlled by the PiccoloHybrid+.
• Vibration sensor – for automatic security theft alarm and motion detection
• Over the Air (OTA) configuration via SMS
• Highly compressed OTA, UDP communication packaged with MidLink Middleware and “Plug & Play“ API or DLL for quick integration into any third party software, recommended for dot.NET platforms
• Or direct TCP/IP communication OTA, (no Middleware) packaged with “Plug & Play“ API or DLL for quick integration into any third party software, recommended for Unix and/or Linux platforms
• OTA Diagnostic – via Wireless Links proprietary application and communication software
• USB port for firmware download and configuration
• USB port powers the unit during configuration and testing
• Firmware download and configuration via USB
• Integrated internal analog temperature sensor sends unit temperature with every GPS data transmission
• High location accuracy achieved with integrated 66 channel MTK GPS technology
• Optional external GPS and /or cellular antenna
• Sends battery level with every GPS data
• Store and forward- the unit can store up to 10,000 events when out of cellular coverage and then send them automatically when back in cellular coverage
• Sends Cell based Locations in addition to GPS
