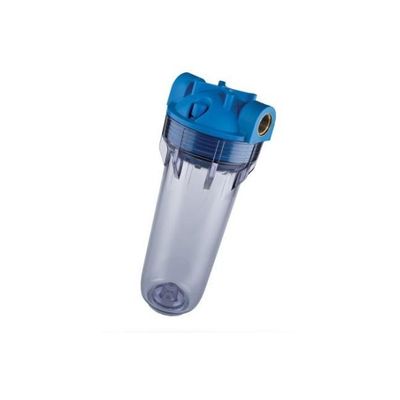

Atlas Filtri - Model PLUS 2P SX -Piece Water Filters
They are housings in the single, DUPLEX and TRIPLEX, in transparent or opaque models. The IN/OUT connections available are 1/2”, 3/4”, 1” brass BSP thread, or plastic with BSP or NPT thread. The PLUS 2P SX water filters are made to house cartridges with a variable height 4” to 10”.
Atlas Filtri proposes technologically advanced solutions with cutting edge design and materials to respond to the most ambitious and particular market requests.
The PLUS 2P SX double and triple stage variations, formed by a single-block manifold, eliminate all problems related to water losses between intermediate connections, guaranteeing simple and quick installation and maintenance.
Along with the housings there is a broad range of accessories and spare parts. Full control with potable water filters version M with manometers.
- Water filters designed for POU and POE applications
- Models Plus 2P SX with 2 pieces
- Version single DUPLEX and TRIPLEX
- Suitable with SX (DOE) cartridges
- IN/OUT male or female 1/2", 3/4”, 1” connections
- Metal or plastic BSP or NPT thread
- Variant MP with IN/OUT male in plastic, 1/2”, 3/4”, 1” BSP
- Transparent ((TS) or opaque (AB) bowls
- Cartridge heights that can be installed: 4”, 7”, 10”
- Model M with 2 manometers
- Materials: Reinforced polypropylene, SAN
- Maximum operating temperature: 45°C (113° F)
- Maximum operating pressure: 8 bar (116 psi)
- Atoxic materials, suitable for potable water
- Practical and easy installation
- Safer and convenient in the double and triple systems
- Flexible to different requirements
- Full control with manometers
- Wide range of accessories
