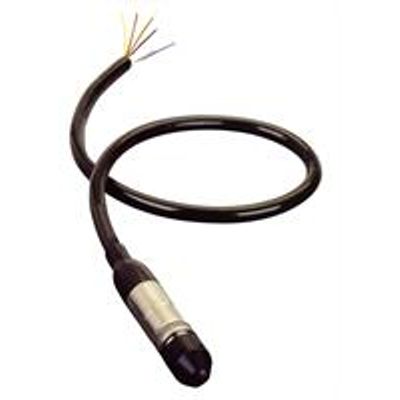

Hydreka - Model PTX/PDCR -Piezometric Probe

The Winfluid interface allows the sensor to be programmed for alarm management based on min/max values or on acceptable flow rate range, to correct the measured value, to define level/flow rate conversions (free surface values) and to create measured data reports.

Fully submersible pressure sensor for:

• Potable water network monitoring
• Sewer network monitoring
• Water bodies monitoring
• Aquifer monitoring

It can be used for height/flow calculations :

• Calibrated dams (weirs…)
• Venturi channels

• Rugged structure
• Waterproof structure (due to high pressure polyurethane injection)
• High performance accuracy, stable over extended lifetime
• Kevlar® strain relieved vented cable, supporting more than 50 kg (22.7 lb)
• Vented polyurethane (Model 1830 – adapted for potable water) Hytrel® 6108 (Model 1840 – hydrocarbon compatible) cable
• Titane body for compatibility with aggressive medias
• Cable clamp system for waterproofing
• Interfaced with HYDREKA data loggers

• Accuracy: Combined effects of Non-linearity, Hysteresis and Repeatability: +/-0.1% FS or+/-0.06% FS
• (Option)
• Temperature Effects : +/-0.3% Typical FS Temperature Error Band (TEB)
• Long-Term Stability : +/-0.1% FS typical per annum
• Pressure ranges: 0.75 ; 1.5 ; 3.5 ; 7; 10; 15 ; 35 ; 70 ; 100 ; 150; 200; 350 ; 600 mH20 (75 mBars; 150 mBars; 350 mBars; 700 mBars; 1 Bar ; 1.5 Bars ; 3.5 Bars ; 7 Bars ; 10 Bars, 15 Bars, 20 Bars, 35 Bars, 60 Bars)
• Operating temperature range: From -20*C to 60°C
• Compensated Temperature: From -2°C to +30 °C
• Range:
• Overpressure: The operating FS pressure range can be exceeded by 4 x F.S. with negligible effect on calibration for 350 mBars range and by 2 x for other ranges
• Media Compatibility: Fluids compatible with 316 stainless steel (body),polyurethane or Hytrel® 6108 (cable) and EPDM (nose cone)
• Excitation Voltage:
• PDCR : 10 VCC/VDC at 1 mA nominal
• PTX : 9 to 30 VCC/VDC across terminals
• Output Signal:
• PDCR : 50 mV for 350 mBars range
• 100 mV for 700 mBars range and above
• PTX : 4 to 20 mA proportional, for zero to FS pressure (2 cables)
• Diameter: 017,5 mm (PDCR and PTX)
• Length: 105 mm (PDCR) / 185 mm (PTX)
• Pressure Connection: M14 x 1,5 mm (male) with recessed open face diaphragm, fitted with 6 mm protective EPDM nose cone
• Water Ingress Protection: IP68to700mH20.
• CE Compliance: ATEX Directive, EMC Directive, Pressure Directive
• Accessories: Slim line sink weight / Pressure balance device/Installation accessories
