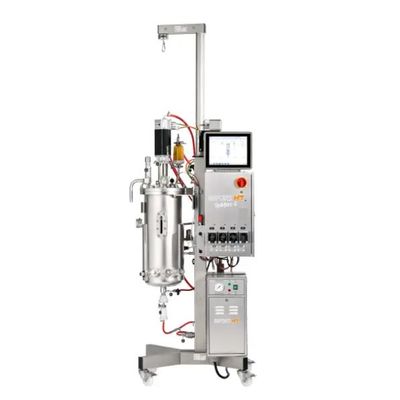

Infors HT - Model Techfors S -Pilot Bioreactor

Easily scale-up from bench
Regardless of your experience in bioprocessing, the Techfors-S pilot bioreactor is easy to operate with 360-degree access to all system components, which are the same as our bench-top bioreactors, ranging from the sensor technology to gassing strategies.

Seamless data transfer
Easily transfer your data from R&D to process development with eve®, a web-based bioprocess platform software that integrates with your bioreactors so you can efficiently control, monitor, and analyze your data.

True collaboration from start to finish
Engage with our experienced engineering team to configure your Techfors-S bioreactor with the flexibility to define your utility connections, sensor technology, sample and harvest ports, automated steam sterilization, certification packages, and more.

Vessel

• Working volume from 3 to 30 l
• Double jacket made of 316L stainless steel
• Individually configurable with a selection of different impellers, spargers and special accessories
• Up to 14 ports for sensors (anti-foam, optical density, pH, pO2, redox, conductivity, live cell density, etc.)
• 1 port in the bottom of the vessel for harvesting/sampling

High-performance pumps

• Basic setup includes four easy-load precision pumps per culture vessel (option of two more)
• Gravimetric feeding (with external scale)
• Profile-based pump-speed control with eve®

Gassing

• Customer-specific gassing with up to 5 gas lines
• Feed via rotameter or mass-flow regulator
• Cascades may be configured in serial or in parallel for controlling the pO2 via the stirrer speed, gassing rate, gas composition, etc.

Sensors

• Customers may choose from digital (Modbus) or analog sensors.
• Product calibration of the pH sensor for reliable measurements during long-running bioprocesses
• If required, additional sensors and actuators can be connected.

12" Touchscreen Controller

• Touchscreen with integrated OPC server
• Reliable measurement and setting of the bioprocess parameters and communication with eve®
• Up to 24 selectable parameters, such as temperature, stirring speed, pH, pO2, anti-foaming agent, feed

eve® Bioprocess Platform Software

• Planning, controlling and analysing bioprocesses
• Integrated workflows, devices and bioprocess knowledge
• Integrates bioreactors and analytical instruments, regardless of the manufacturer
• Web-based project organisation
• Communication using the latest OPC UA (Minifors 2) or OPC XML-DA standard (Multifors 2, Labfors 5, Techfors-S, Techfors)
• Synchronisation of process-related events such as sampling or inoculation

• Vessels: 15 l / 30 l / 42 l
• Working volume: 3–10 l / 5,3 l–20 l / 6–30 l
• Dimensions (W x D x H): 1017 mm x 934 mm x 1841 mm
• Drive: Direct drive to 1200 min-1
• Magnetic drive to 300 min-1 (Zellversion)
• Temperature: Coolant temperature + 5 °C to 79 °C; to 125 °C for sterilisation
• Gassing per vessel: up to 3 MFCs
• Pumps per vessel: 3 fixed, optional 2 additional variable
• Ports per vessel:
• Top plate: 19 mm    max. 9x
• Vessel bottom: 25 mm    max. 5x
• Connectivity: OPC XML DA via Ethernet
• Parallel operation via touch screen controller: -
• Sterilisation: Sterilisation-in-Place
