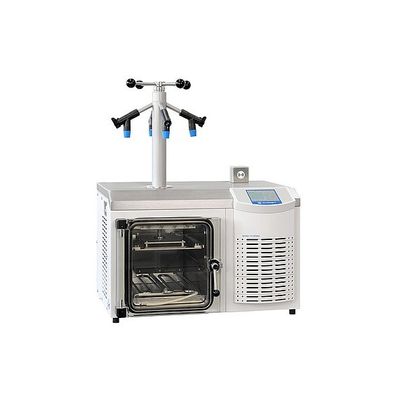

Martin Christ - Model Epsilon 1-4 LSCplus -Pilot Freeze-Dryer
The Epsilon 1-4 LSCplus freeze dryer is a compact, versatile laboratory and pilot unit designed for a range of applications including routine drying operations and process optimization. This table-top unit is particularly efficient at drying both solid and liquid aqueous products contained in vials, ampoules, and other containers. Its Teflon-coated aluminum shelves provide rapid cooling and heating, enhancing its efficiency for fast-paced laboratory environments. As an advocate for sustainability, Martin Christ equips their freeze-dryers with natural refrigerants to minimize environmental impact by significantly lowering the Global Warming Potential index. The unit incorporates advanced features such as the WTMplus 2.0 Wireless Temperature Measurement to streamline operations and the use of dual vacuum sensors that provide detailed insights into the lyophilization process. Additionally, it supports integration with cleanrooms and glove boxes for stringent safety and hygiene standards, expanding its usability in sensitive environments.
The Epsilon 1-4 LSCplus freeze dryer is a very compact, general purpose high-performance laboratory and pilot unit for tabletop installation. The application area of this unit extends from routine drying operations to process optimisation tasks.
This unit is suitable for drying solid or liquid, mainly aqueous products in vials, ampoules, tubes, other glass containers or dishes.
The integrated drying manifold design facilitates the use of round-bottom flasks and wide-neck bottles.
The directly cooled and heated shelves made from Teflon coated solid aluminium enable especially fast cooling and heating processes.
- Ice condenser capacity: 4 kg
- Ice condenser temperature: –55 °C
- chamber volume: 40 litres
- Shelf dimensions: 270 x 400 mm (W x D)
- Number of shelves: 1
- Shelf area: 0,108 m²
- Shelf spacing: 140 mm with sealing device
- 172 mm without sealing device
- GWP Index: 2
- Shelf temperature: –45 °C to +60 °C
- Shelf temperature accuracy: max. ±2 °C
- Cooling system: Air cooled (optionally water cooled)
- Ice condenser cooling system: 1 compressor, 0,51 kW
- Shelf cooling system: (see ice condenser cooling system)
- Unit dimensions: 780 x 975 x 530 mm (H x W x D)
