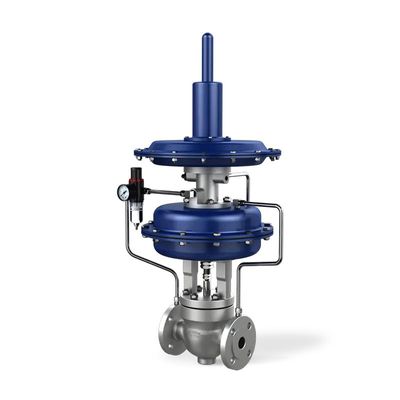

Lnsen - Model BR.W514 Series -Pilot-Operated Regulator Valve

The BR.W514 series pilot operated self operated pressure regulator (hereinafter referred to as the pressure regulator) is a type of pressure regulator that does not require external energy and uses the energy of the controlled medium as the power source. It introduces the detection and execution mechanism of the pilot to control the position of the valve plug, change the flow rate of the medium flowing through the valve, and maintain a stable pressure after the valve. The characteristic of this valve is that the pressure setting value can be achieved on the pilot and can be adjusted freely during operation, making it convenient, fast, and labor-saving; The control accuracy is about twice that of a general pressure regulator. Large pressure reduction ratio. Low set pressure, etc.
