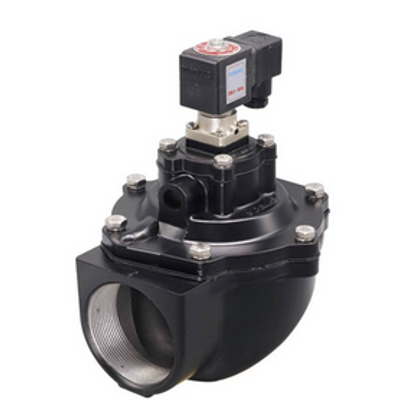

Maniks - Model MEP -Pilot Operated Reverse Jet Pulse Valve
Maniks is a trusted pulse valve manufacturer and industrial valve company in India, offering high-performance pulse jet valves and pilot operated valves designed for dust collector systems and pneumatic automation. Our pulse solenoid valves ensure efficient cleaning in bag filters, while the pilot operated valve provides reliable control and extended service life. As one of the best valve manufacturers in India, Maniks delivers technology-driven performance, durability, and precision that industries can rely on.

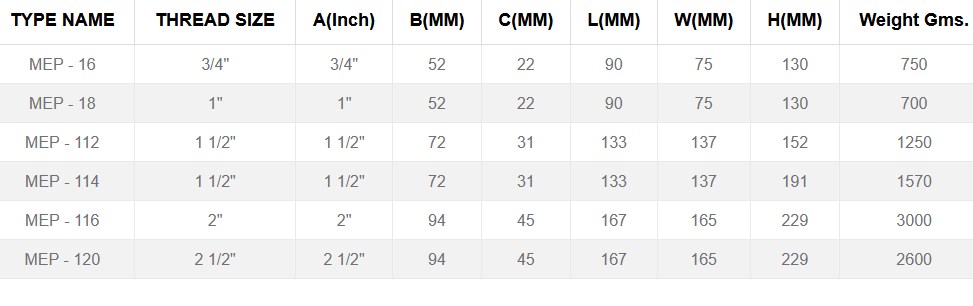

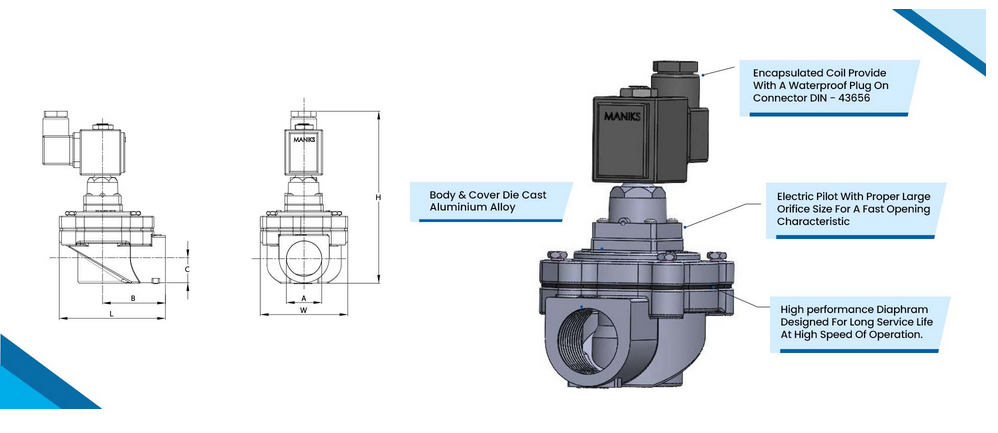

Pulse Jet Valve Specification
Our pulse valves are engineered to deliver consistent, powerful performance in demanding dust collection and industrial applications. Pilot operated valve Designed with precision and tested for durability, each unit ensures smooth operation and long service life.
Pulse Valve Specifications
Electrical Standard Voltage
AC 50Hz .. 24/220 Volts, DC 24V, fluctuation ± 10%
20 W / 19 VA
DC Current / AC Current
Maximum Medium Temperature
65°C
Maximum Ambient Temperature
55°C
