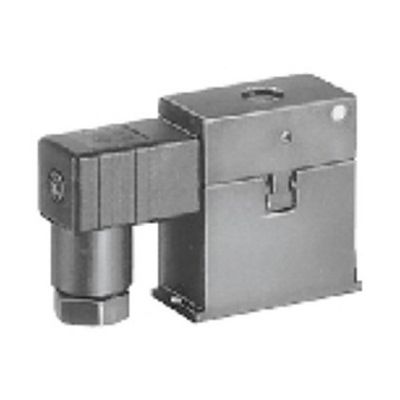

SAMSON - Model 3964 -Pilot Solenoid Valve
Pilot valve, Pilot valves offer high operational reliability when controlling booster valves, solenoid valves and valves according to ISO 5599/1 with CNOMO connection pattern. Suitable for booster valve SAMSON Type 3756. Housing made of polyamide (black), polymethylene (green, amplifier). Flange connection or attachment with CNOMO adapter plate. reverse polarity protection.he pneumatically operated valve actuators by pneumatic lines.
Most popular related searches
solenoid valve
pilot solenoid valve
pneumatically operated valve
valve actuator
valve operator
pneumatic actuator valve
pneumatic actuator
pneumatic valve
membrane element
control valve
- Compact design
- Identical position of all ports for version normally open and normally closed (except connection M5)
- Plastic wrapped electromagnet
- Interchangeable solenoid system
- 360° adjustable position of electromagnet
- Also suitable for coarse vacuum
- Silenced exhaust port
- Manual override (depending on version)
- Any installation position possible
- Cable plug can be mounted turned by 180°
- Combined exhaust optional
- Optional - ATEX-Version for explosion-risk areas - UL-approval
- Mounting rail for manifold mounting Type 603 available as option
- Version with safety integrity level SIL 4 according to IEC 61508
- Protection principle intrinsically safe
- Manual override as a push button or push/switch button
- Membrane switching element as an amplifier
