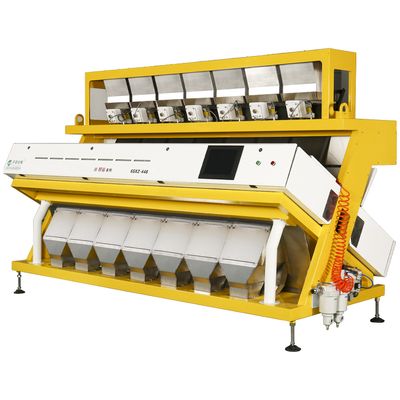

Pinghao - Model RC -PET Flake Plastic Color Separating Machine

1. One button operation
2. Competitive price for distibutor
3. Reliable support and easy maintenance
4. Heavy duty

Plastic color sorter can separate plastic flake or granule by slightly color difference, plastic color sorter can also remove small stone, impurity of plastic, recently shape sorting is also used for plastic classification.

High speed CCD camera scans objects that fall from vibrating chutes, ejectors will blow away the material with different color through compressed air, optimized algorithm is the core technology of color sorter, our machine can also reject material by only the photo, it is so efficient for changeover.

1. 10K Nikon CCD camera with high definition, sorting accuracy up to 0.01mm², customized lens to achieve clear image without distortion
2. USA chip, ARM+ FPGA, powerful hardware with intelligent algorithm.
3. Durable LED system satisfy requirements of different color identification,separation and classification.
4. Synchronization system makes the adjustment work into ONE BUTTON OPERATION, rejection by photo is available.
5. Ejectors longer has longer lifetime, lower air consumption, faster speed, easier maintenance and high sorting accuracy.
6. Wider chute up to 332mm makes increase production capacity.
7. Self-checking system makes the machine can check the ejectors, cameras, control boards and background boards automatically.
8. No wearing parts(except mine stone color sorter) makes 0 maintenance cost.
