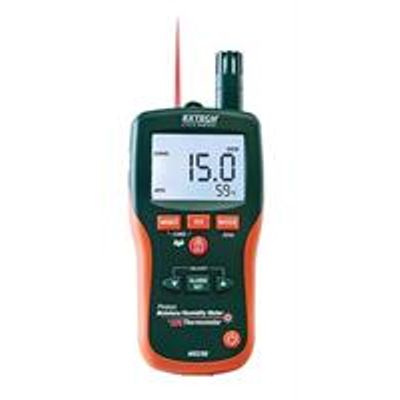

Extech - Model MO290 -Pinless Moisture Psychrometer + IR
The MO290 is an 8-in-1 meter that combines a Pin/Pinless Moisture Meter with a built-in InfraRed Thermometer. Additional measurements include: Temperature, Humidity, Grains per Pound, Dew Point, Vapor Pressure, and Condensation Point. Complete with pin moisture probe, 9-Volt battery, and case.
Most popular related searches
non-contact infrared thermometer
pinless moisture meter
humidity temperature probe
humidity measurement
infrared thermometer
moisture meter
temperature probe
temperature monitoring
moisture sensor
infrared temperature sensor
- Measure Humidity, Air Temperature (with built-in probe) plus non-contact InfraRed Temperature
- Pinless moisture sensor allows to monitor moisture in wood and other building materials with no surface damage
- Remote pin-type probe (MO290-P) for contact moisture readings (3ft/0.9m cable length)
- Select from multiple wood types and measurement ranges
- Easy to read, large dual display with backlit feature
- Simultaneously displays % moisture of wood or material being tested and Air Temperature, IR Temperature, or Humidity
- Pinless measurement depth to 0.75" (19mm) below the surface
- Non-Contact InfraRed Thermometer with 8:1 distance to spot ratio and 0.95 fixed emissivity
- Built-in Humidity/Temperature probe measures Relative Humidity, Air Temperature plus Grains Per Pound (GPP), Dew Point (DP), and Vapor Pressure
- Programmable high/low Moisture and Humidity alarms
- Automatic calculation of differential Temperature (IR - DP) to determine condensation point
- Min/Max and Data Hold, Auto Power Off
- Complete with battery and pouch case
- Sensor Type : Non-Penetrating
- Pinless Moisture : 6 to 99.9 (Relative)
- Pinless Depth : up to 0.75" (19mm)
- Pin-type Moisture (probe included) : 0 to 99.9%
- Max Resolution : 0.1, 0.1°F/°C
- Humidity : 0 to 100%RH
- Temperature (Air) : -20 to 170°F (-29 to 77°C)
- Temperature (IR) : -4 to 392°F (-20 to 200°C)
- Vapor Pressure : 0 to 20.0kPA
- Dew Point : -22 to 199°F (-30 to 100°C)
- Mixing ratio : 0 to 999GPP (0 to 160g/kg)
- Field of View : 8:1 Distance to Target ratio
- Emissivity : 0.95 fixed
- Dimensions : 6.5x2.8x1.5" (165x70x38)
- Weight : 7.4oz (210g)
