Fiberscope Zikmund - Pipe Crawler

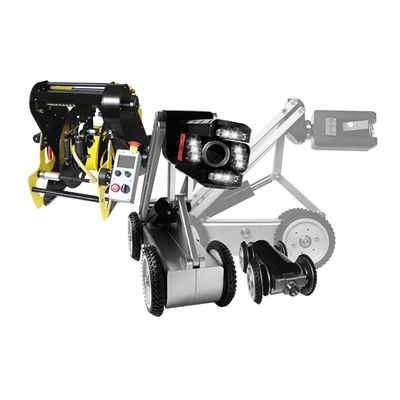

Welcome to the ZIKMUND Pipe Crawler series which offer you to inspect pipe and sewer lines thoroughly. ZIKMUND series offers a professional inspection package for standard pipe inspections as well as a expert inspection setup that upgrades the existing pipe tractor to be able to inspect laterals. These versatile inspection cameras are available in lengths up to 1,640ft and can be equipped with sonde beacons for detection, laser measurement of pipe diameter, defect measurement and pipe ovality measurement. One unique benefit that ZIKMUND Pipe Crawler offers is a special technology mounted on the tractor for detecting unwanted groundwater inflow and infiltration.
ZIKMUND 125 Robot
— Inspect 4" to 12" Pipe Diameters
— Tractor Body with Add-on Wheels
— Steerable Tractor
— Central Pressurization System
— Internal Pressure Sensor
— Inclination and Tilt Measurement
— Rear View Camera Head
— RTH 34 Pan and Tilt Camera Head
— Laser Measurement(optional)
ZIKMUND 315 Robot
— Inspect 6" to 80" Pipe Diameters
— Tractor Body with Add-on Wheels
— Steerable Tractor
— Central Pressurization System
— Internal Pressure Sensor
— Inclination and Tilt Measurement
— Motorized Camera Elevator
— Groundwater Infiltration Detector (optional)
— Rear View Camera Head
— RTH 112 Pan and Tilt Camera Head
— Laser Measurement(optional)

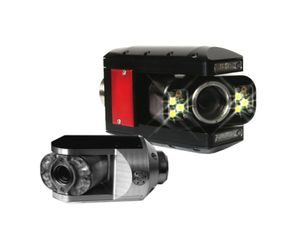

RTH 34 Camera Head
— Inspect 4" to 16" Pipe Diameters
— To Be Used with ZIKMUND 125 Robot
— Full HD Camera Sensor
— Manual Focus
— Central Pressurization System with Crawler
— 512Hz Integrated Sonde
— Diameter and Pipe Ovality Laser Measurement (optional)
— Compatible with all crawlers, TechWorm and Lateral Inspection System
RTH 112 Camera Head
— Inspect 6" to 80" Pipe Diameters
— To Be Used with ZIKMUND 315 Robot
— Full HD Camera Sensor
— Manual/Auto Focus
— 10x Optical Zoom
— Central Pressurization System with Crawler
— 512Hz Integrated Sonde
— Diameter and Pipe Ovality Laser Measurement (optional)
— Laser Measurement for Defect Measurement (optional)

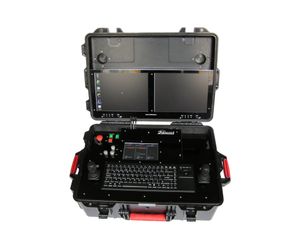

Control Box
— 2 Monitors (1x Image Display, 1x for PC)
— Optical Trackball for Cursor Control
— Keyboard for Text Generation
— Joystick and Button Control of Crawler and Reel
— USB Port for External Devices
— Tether Connector to Cable Reel
— Internal Memory Storage
— 110 to 230V AC Power Input

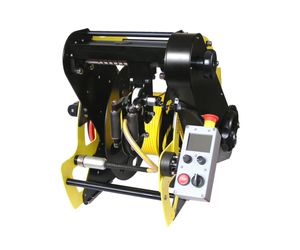

Cable Reel
– Tether: Non-Coaxial Cable, 200m to 500m (656ft-1640ft)
– Automatic Motorized Reel System
– Footage Counter for Cable Tracking
– Emergency Stop Knob
– Auto Cable Layering

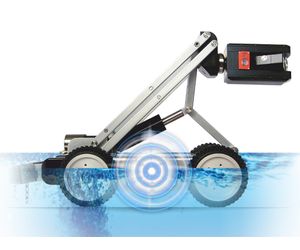

The ability to detect the inflow of groundwater was an innovation developed by ZIKMUND and unique to us. When a camera reaches a flooded area, the source of it is often uncertain – it could either be water seepage or have run down to the site in question. Our systems can electronically determine whether it stems from inflow through a broken pipe or not. Results are recorded in a graph that reveals the part of the pipe responsible for the otherwise invisible inflow.
If a sewer is breached by groundwater, wastewater treatment plants are faced with an undesirable increase in the volume of water being purified. Detecting this kind of unwanted inflow is crucial to optimizing conditions for such facilities.

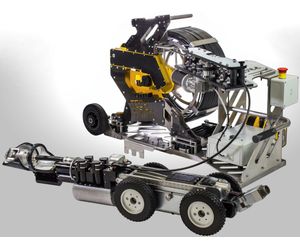

ZIKMUND Pipe Robot setup can be upgraded to inspect outgoing laterals that branch out from the mainline. This makes it possible to enter laterals that don't have a clean-out or are otherwise inaccessible.
