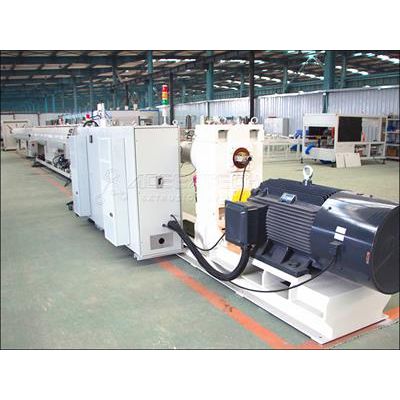

Aceextech - Model PO -Pipe Extrusion Line Machine

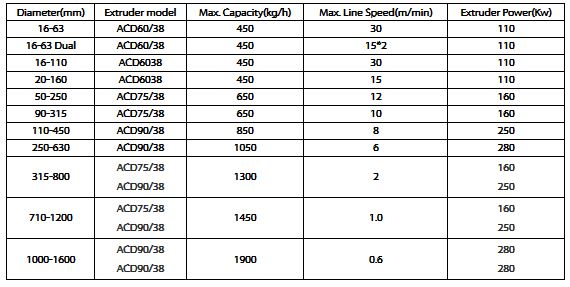

Single screw extruder:
PO pipe die head:

• Suitable forHDPE, LDPE, PERT, PP, PPB, PPH, PPR, PS pipe production
• Diameter range from Ø16 to Ø1600 mm
• High melt homogenity
• Low pressure built up even with high outputs
• Melt channel distribution system
• Equipped with seramic heaters
• Pipe head carriage for easy movement
• Pipe heads are designed according to application requirements.
• Easy maintenance thanks to the optimized and proven designed construction.

Vacuum calibration tank:

• Suitable for PO pipe production
• Diameter range from Ø16 to Ø1600 mm
• Length up to 12000mm
• 304 stainless steel with painted outer surface
• Special water sprays are located on the best position for cooling the pipe efficiently
• Special and easy adjusted pipe supports for each pipe diameter
• Installed vacuum and water pumps can work without any maintenance for long times
• Special cooling baths can be designed for specific extrusion production

Water Spraying cooling tank:

• Suitable for PO pipe production
• Diameter range from Ø16 to Ø1600 mm
• Length up to 12000mm
• 304 stainless steel with painted outer surface
• Special water sprays are located on the best position for cooling the pipe efficiently
• Special and easy adjusted pipe supports for each pipe diameter
• Installed water pumps can work without any maintenance for long times
• Special cooling baths can be designed for specific extrusion production

Haul off machine:

• Pipe range from Ø16 to Ø1600 mm
• High pulling force without lose the shape of the pipes
• Equipped with 2, 3, 4, 6, 8,10 or 12 caterpillars according to the application
• Servo motor driving for providing stable torque and running
• Motorized positioning of the lower caterpillars
• Simple operation
• Completely closed protection for maximum safety
• Chain conveyors with special rubber pads on chains which do no mark on the pipe.
• Synchronization with the extruder screw speed allows stable production during changing the production speed.

Cutting system:

• Automatic synchronisation with extrusion speed
• Planetary equipped with disk and milling cutter for cut and chamfering
• Chipfree equipped with disk blade to ensuring soomth cutting surface without any dust
• Touch screen control panel
• User friendly software developed by Aceextech
• All movements are motorised and controlled by control panel
• Pipe blocking with using universal clamping for easy operation
• Type of the cutting unit is chose depend on pipe.
• Less maintenance needs.
• Completely closed and secured machine for maximum safety.
