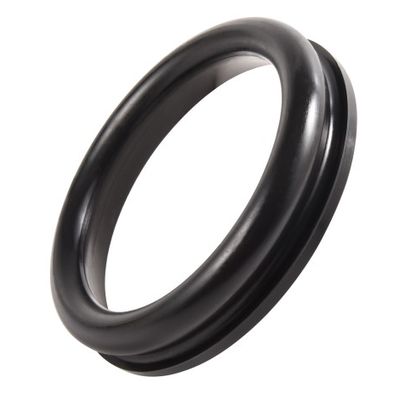

Deesawala - Model DI -Pipe Gasket
Di Pipe Gaskets- WRAS approved rubber gaskets are suitable for use in TYTON JOINT DI (Ductile iron) pipeline, fittings and valves. Di Pipe Gasket provides an extremely reliable flexible joint.
TYTON is a revolutionary restrained joint system that can eliminate thrust block, delivering savings in time and materials. DEESA TYTON is the key to fast track design and construction of ductile iron pipeline systems.Di pipe gaskets offers some unique advantages, it utilizes standard DI (Ductile iron) pipes and fittings, allows you to construct in RRJ fashion, yet have all joints fully restrained, eliminates concrete thrust blocks, accelerates commissioning (no need to wait for concrete curing), streamlines materials sourcing and administration, is ideal for use in weak soils where concrete blocks just won’t work, offers 3 to 5 degrees joint deflection, provides maximum security for strategic mains (fully locked joints), provides an allowable operating pressure (AOP) of 1.6MPa, a maximum allowable operating pressure (MAOP) of 1.92MPa and an allowable site test pressure (ASTP) of 2.0MPa.
Size Range: DN80 – DN1000
Deesawala is one of the leading tyton gasket manufacturers in India. The TYTON® Push-On Gasket is used in the TYTON JOINT® Ductile Iron Pipe & Fittings. All TYTON® Push-On Gaskets are dual hardness gaskets made from vulcanized synthetic rubber, and meet the requirements of the WRAS, BIS, ISO 4633, EN 681 and AS 681 .The standard rubber compound used in manufacturing of ductile iron gaskets is EPDM.
The below link has been provided for the procedure to install Tyton joint gasket.
- WRAS and BSEN - 681 Approved PUSH-ON Tyton Gaskets for C.I & D.I. Pipes.
- WRAS approved rubber gaskets are Extremely strong and efficient flexible joint.
- Di pipe gaskets are Suitable for ‘in the ground’ or ‘above ground’ applications.
- Di pipe gaskets are Manufactured from EPDM rubber providing improved performance over traditional natural rubber.
- High resistance to water, ozone, heat, sewerage, chloramines, UV, and abrasion.
- Joints can be deflected and permit axial movement to compensate for thermal expansion and contraction.
- Size Range: DN80 – DN1000.
- Relevant Standard: IS:5382.
- Di pipe gaskets allows you to construct in RRJ fashion
- It eliminates concrete thrust blocks.
- Accelerates commissioning (no need to wait for concrete curing).
- Streamlines materials sourcing and administration, which is ideal for weak soils where concrete blocks just won’t work.
- Offers 3 to 5 degrees joint deflection.
- Provides maximum security for strategic mains (fully locked joints).
- Provides an allowable operating pressure (AOP) of 1.6MPa, and a maximum allowable
- operating pressure (MAOP) of 1.92MPa and an allowable site test pressure (ASTP) of 2.0MPa.
Size Range: DN80 – DN1200
