Wohler - Model VIS 250 -Pipe Inspection Camera
Full featured and priced right, the Wohler VIS 250 is the perfect Service Camera for inspection of water pipes 1 1/2″ in diameter or larger. Ductwork, dryer vents and a world of other applications are quickly and easily diagnosed. Wohler`s innovative VIS 250 service camera enables you to easily analyze damage in pipes of 1 1/2" dia and larger – and no power outlet required. Compact by design and powered by a rechargeable battery, this complete camera set is supplied in a plastic case. The camera head features a powerful, integrated light to allow you to precisely analyze damage in waste water pipes (at least 1 1/2" dia) and inspect downpipes as well as flue gas lines. Absolutely essential to analyze damage quickly.
- Analyze damage and inspect:
- Waste water pipes of 1 1/2" dia and larger
- Ventilation lines of 1 1/2" dia and larger
- Inspect hollow spaces, e.g. in front-wall installations
- Flue gas lines up to approx. 6" dia
- Waterproof, light-sensitive camera head with a diameter of just 1" easily takes bends in stride
- Store video footage on a 2 GB SD card (Wohler VIS 250)
- Digital Indication of the camera head
- Electronic metering displayed on monitor

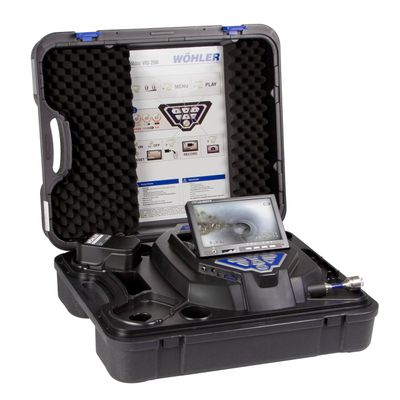

- Fully equipped mobile solution in a robust, plastic case
- Does not require main power supply
- Bright TFT color monitor for razor-sharp images
- Tiltable and removable monitor
- Integrated video output for documentation purposes
- Battery operating time: 2 x 120 min. with 2 rechargeable batteries (optional)
- Data exchange via mini USB cable (Wohler VIS 250)
- Transmitter integrated in camera head makes it possible to precisely locate the camera head
- Facilitates targeted repairs to damaged pipelines
- Telescopic holder makes it possible to locate damage under floors or in ceilings
- Chalk holder with lithographic chalk ensures it is possible to mark located damage immediately
- Powerful rechargeable battery
Simply record and store photos and videos on a 2 GB SD card (Wohler VIS 250) for documentation and archiving purposes for you and your customers.
Monitor
- Dimensions housing TFT-display Video out Weight
- 7″ x 4.5″ x 1.3″ 7″ / 16:9 format FBAS signal 1 lbs
Power supply
- Space for 2 rechargeable batteries, each 12 V or via power pack
Battery operating time
- Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)
Miniature camera head, color Ø 1″ mm
- Type - 1/3″ COLOR CMOS
- Resolution - 420 lines
- Pixels - 768 x 576 (PAL), 656 x 492 (NTSC)
- Light sensitivity - 0.5 Lux
- Lens - f = 0.09″, F = 2.5
- Viewing angle - 115°
- Light source - 12 white LEDs
- Degree of protection - Waterproof to IP 68
- Dimensions - Ø 1″ x 1.5″
- Weight - 0.5 lbs
- Operation temperature - 32…104 °F, RH 95 % MAX
- Storage temperature - -4…122 °F, RH 95 % MAX
- Transmitter frequency - 8.9 kHz
Push rod
- Length – 100 ft.
- Diameter – 0.2″
Distance measurement
- electronic meter counter
Plastic case
- Dimensions - 20″ x 17″ x 7″ (l x w x h)
- Weight - 15 lbs
Locator receiver
- Display - Graphic visualization of transmitted position
- Output impedance
- Headphones - 32 Ohm
- Power supply - 3.7 V Li-Ion rechargeable battery
- Operating temperature - 32…104 °F
- Storage temperature - 14…104 °F
- Weight - 1.3 lbs
- Dimensions - 13″ x 6″ x 3″ (l x w x h)
Memory (Wohler VIS 250)
- Recording - 2 GB SD card (2.5 h recording capacity)
- Interface - Mini USB port
