USA Borescopes

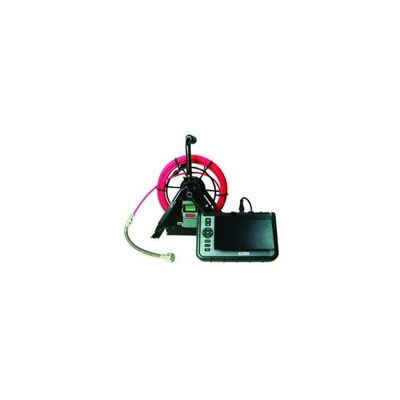

Model USAPRM280 -Pipe Inspection System
FromUSA Borescopes
Superior patent pending design: Easy to use (works vertically or horizontally), equipped with 22m extra long and rugged cables for your tough inspections: construction sites, heater and air condition, drains and plumbing…etc. Great for rugged and curved inspection: Passed through two 90º sharp curves. Stainless steel camera head: With 8 white LEDs, safe to work in unleaded gasoline, diesel, brake/transmission fluid and machine oil. Water and dust proof: Probe is water-tight to IP68 standard (up to 10m); Steel probe reel is sturdy and dust-tight to IP65 standard. System options: VIPER or FASTA.
Most popular related searches
pipe inspection system
pipe inspection
inspection system
pipe system
air conditioning
water probe
dust probe
construction site inspection
ring brush
construction inspection
Centering devices
- Metal ring (Ø50mm)
- Brushes (Ø150mm or Ø100mm): to help sweeping out the dust during the inspection
- Wagon (Ø150~300mm)
- Camera head lighting: 8 LEDs (white)
- Camera head diameter/length: 28mm
- Camera head material: Stainless steel
- Operating temperature: -10ºC ~ 60ºC
- Storage temperature: -10ºC ~ 60ºC
- Display resolution: 640 x 480
- Reel diameter: 300mm
- Reel waterproof: IP65
- Probe head diameter: 6.0 mm
- Probe applicable pipe (Ø): 40mm ~ 100mm
- Probe length: 22m
- Probe flexibility: Two 90º bends in Ø40mm pipe
