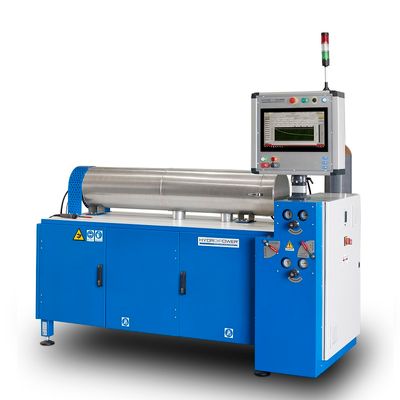

HYDRO+POWER - Model BCPE120ES -Pipe Permeability Test Bench Machine
FromOP S.r.l.
The BCPE120ES test bench performs permeability tests on thermoplastic pipes in accordance with EN1736:2008-7 specifications, using 100% helium tracer gas inserted into a duly heated test chamber and detecting any permeations on the structure of the pipe itself or on the connection points. Using this bench it is possible to test pipes or other hydraulic/pneumatic components with any connection. The automation of the test cycle is performed using customized software. The system is also equipped with online remote assistance capable of detecting any faults.
Most popular related searches
permeability test
permeability testing
test chamber
pipe testing
hydraulic pneumatics
safety system
thermoplastic piping
thermoplastic pipe
chamber test
pipe testing system
- Minimum tube section 3/16''
- Maximum tube section 1'' 1/4
- Test pressure 120 bar
- Test fluid: helium
- Electrical interlock when carrying out the test with the door open;
- Anti-burn test chamber insulation;
- Emergency fungus;
- Automatic interruption in case of any malfunction of the bench;
- Light signal tower.
- Standard voltage: 230V - 50 Hz - single phase (special voltages on request)
