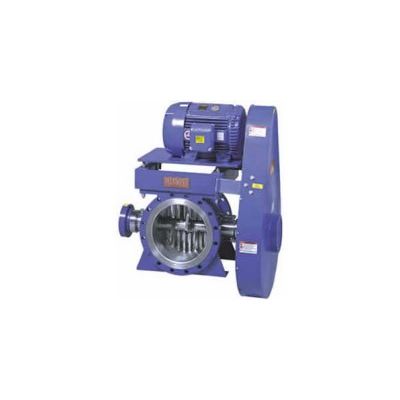

In applications worldwide, the PIPELINE Delumper has demonstrated its processing and cost effective benefits.The ultra-compact, straight through PIPELINE Delumper is designed for easy installation. This fluid tight pressure rated unit has the full throughput capacity of the pipe to which it is connected. Its working principle employs rugged impeller teeth passing through a heavy bar grating to reduce the size of the product. These teeth completely clear the slots of the bar grating and at the same time clean the entire pipe cross section area.

Reduces Downtime and Improves Flow Characteristics
The Pipeline Delumper˙ converts a solids laden stream into a fully suspended homogeneous flow—instantly. It stops settling out, clustering and over-pressure. The reduced particles are entrained in the stream away from the pipe walls. Scale that becomes dislodged from reactors, silos, and tanks is crushed before it can impede the flow.

Improves Product Consistency
The Pipeline Delumper improves product quality, blend and consistency. It instantly reduces tough solids to a uniform output size. It improves mixing, drying and dissolving operations. Nozzles are kept clear; sensitive media protected. The result is reduced downtime, a process that is in better control, and substantial savings to the operation.

Construction
The ultra-compact PIPELINE DELUMPER is designed for easy installation in straight-thru, liquid, pneumatic or gravity systems. This unit aggressively reduces solids up to the full pipe size with a self-clearing, self-feeding mechanism. It is supplied with an effective seal system housed in an easy to maintain bearing/seal cartridge. This cartridge design eliminates the need for plant personnel to handle delicate seal components. A choice of seals is available.

To The Rescue:
Repeated plugging of pipelines and pumping systems was a critical problem at a major chemical company. Product lumps building up in the stream were forcing frequent and costly shutdowns for the cumbersome clean-out of the blockages. Unable to keep up with production demands, the situation became critical. The solution was the installation of an in-line Pipeline Delumper. This unit completely eliminated the blockages without expensive system additions or alterations. Based on the results, seven more units were installed on their other systems.

Options

• High Temperature Capability
• Complete Systems
• Stand and Hopper
• Direct Drive
• Automatic Controls
• Zero Speed Indicator

Configurations
The Pipeline Delumper can be configured to meet most application requirements. Units are supplied with standard 150# ASA flanges and can be supplied with up to 600# flanges. Packings, mechanical seals or nitrogen purge seals can be provided. A unique replaceable liner system allows for the complete periodic renewal of the unit interior. An optional sizing screen can be provided for fine particle reduction. A hard facing option provides extended cutter life in extremely abrasive service. Controls and zero speed indicators are also available. Units are provided in carbon steel, 304L or 316L stainless steel, and special nickel alloys.

• Standard 150# Ansi Flanges
• Optional flanges to 600#
• Self-Clearing Crushing Action
• Most Sizes Pipe Supported
• Packing or Mechanical Seals
• Belt Drive Standard with safety guard
• Materials of Construction: CS, T304L, T316L
• Standard Pipeline Sizes: 3" - 24"
