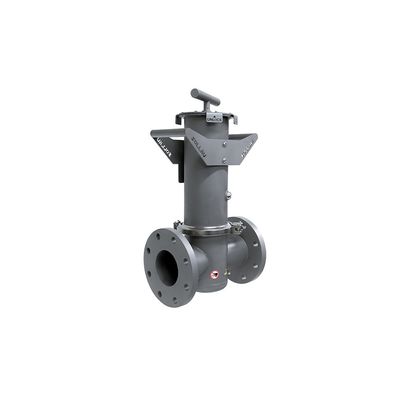

Sollau - Model MSP-MC - Piranha -Pipeline Magnetic Separators

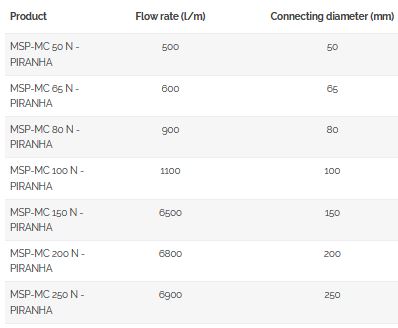

Pipeline magnetic grate separator MSP-MC is designed to separate iron contamination from liquids (or dry substances of good bulk properties).
- High pull-off force
- Integrated lock of magnetic tubes
- Resistant all-stainless steel one- and double-sheathed design
- Pressure resistance up to 10 bars
- 18,700 Gauss on the core and up to 12,200 Gauss on the shell
- Dividing system for using the entire length of magnetic tubes
This economical version of the pipeline magnetic separator with manual cleaning is designed for the separation of ferromagnetic particles from liquids flowing in small diameter pipes (as the separator body includes only one magnetic tube in a stainless steel housing).
Just like in the case of the standard MSP-MC, the trapped magnetic particles remain at the rear of the magnetic tube, i. e., they do not block the flowing cleaned material and are protected from wash-off until the protective tube is cleaned. During the cleaning it is necessary to unscrew the union nut in order to release the separator body from the piping system. Afterwards the magnetic core is moved by the control lever to the upper position, enabling the trapped magnetic impurities to spontaneously fall off the surface of the protective stainless steel tube (if needed, the protective tube can be also washed with water).
Design of flow-liquid separator
The basic elements the magnetic grate separator in housing consists of are magnetic tubes (made from stainless steel). While the material flows around the magnetic tubes, a very strong magnetic field (generated by the neodymium NdFeB magnets inside of the tubes) traps all metallic particles on the surface of the tubes. The sets of tubes are placed one above the other inside of the housing (or one behind the other – in case of a vertical position of the tubes) and the first set of tubes consists of one tube less. The grate sieve - created in this way – is in a very intensive contact with the flowing material and can capture even the smallest ferromagnetic impurities and guarantees an extremely high separation efficiency.
How does flow-liquid magnetic separator work?
The metal particles captured on the magnetic tubes migrate to the rear of the tubes where they remain protected from wash-off until the tubes are cleaned. Our pipeline magnetic separator is easy to install and maintain, made from stainless steel and its robust design (in connection with very strong neo magnets from rare earth ores) provides for a long-term and durable solution to magnetic separation problems.
Which way is flow-liquid separator cleaned?
In the course of manual cleaning the inner part of the separator is taken out, the magnetic cores are pulled out of the tubes (by operating lever) and the captured magnetic impurities fall off the tubes spontaneously. In case of bigger pipeline magnetic separators (or if the cleaned material is considerably contaminated with ferromagnetic impurities), the demagnetization process can be carried out pneumatically (and – if needed - with automatic control).
Other advantages of our standard magnetic separator for pressure pipeline transport MSP-MC
- a peephole (for the optical inspection of the magnetic tubes as well as of the material flow)
- an integrated lock of the magnetic tubes (preventing unauthorized persons from tampering with the separator)
- a chambered system ensuring the exposion of the liquid to extremely strong magnetic field for maximum time (the best possible efficiency of the magnetic separation is achieved as the entire length of the magnetic tubes is utilized)
- a mesh strainer (removing non-magnetic particles)
