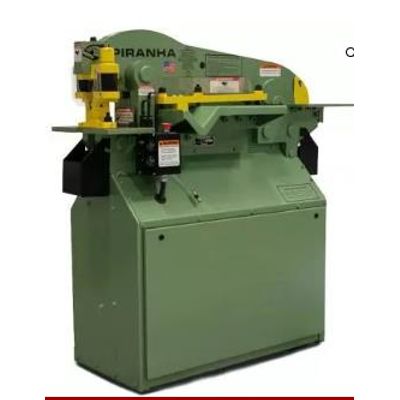

Piranha - Model P-50 -Ironworker Machine
Piranha P-50 ironworker machines are the entry-level of the iconic line of Piranha hydraulic ironworker machines, but they don’t lack the toughness and precision expected from a Piranha Ironworker. P-50 also has a nice list of available attachments to enhance its usefulness.
| Punching (50 Tons) | 13/16” diameter through 3/4” plate |
| Throat Depth | 5” |
| Bending (Optional) | 6” up to 12” w/4-way die block |
| Round Bar Shear | 1/4” through 1-3/8” |
| Square Bar Shear | 1/2” through 1” |
| Flat Bar Shear | 12” x 3/8”, 10” x 1/2”, 6″ x 3/4″ |
| Angle Shear | 3” x 3” x 3/8” |
| Coping/Notching | 2-1/4” x 3” x 1/4” |
| Motor | 3 HP, 3 Phase |
| Weight | 1,700 Lbs. |
- Mechanical Hold Down
- Coupling Wrench
- Punch Holder, Urethane Stripper, & Die Block
- 1/2” Allen Wrench
- Set of Angle Knives
- Foot Switch
- Set of Coper Knives
- Set of 13” Plate Shear Knives
- Instruction/Parts Book/Video Link
Normal delivery is from stock subject to confirmation at the time of order. Price is ExWorks factory
Rockford, Illinois and does not include any applicable sales tax or installation. Up to twelve gallons of ISO Grade 32 hydraulic oil is required. The machine is shipped totally wired through the electrical enclosure box. It has been left to the purchaser’s discretion whether to wire direct to a disconnect or to install a cord and plug for mobility.
MegaFab requires Flatbed Trailer(s), with adequate Chains and tarps (to cover full height and width), to assure protection of this equipment when using truck transportation. Please make sure that adequate deck space is allotted for machine and all accessories shipping with order. Upon request, MegaFab will arrange shipping to destination. Freight and insurance charges are the responsibility of the customer, and will be invoiced on machine order. Please consult the factory for any questions regarding shipping requirements.
