Altek - Model P70 - Piston Diaphragm ...

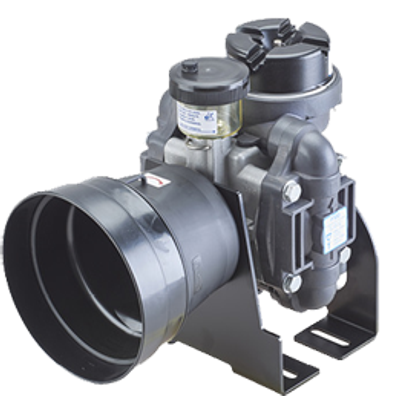

Altek - Model P70 -Piston Diaphragm Pump

Linear steady state characteristics. Integrated hydraulic accumulator. Safe to run dry (liquid). Dry self-priming up to 2 meters depth, then self-priming up to 4 meters depth. Liquid fertiliser-proof (UAN).

Most popular related searches

piston diaphragm pump

diaphragm pump

piston pump

linear diaphragm pump

Desmopan ® Diaphragms
Hydraulic drive

Capacity at 5 bar: 70 l/min
Article-Nr.: 82372*
Working diaphragms: 2 x NBR
Accumulator diaphragms: 1 x NBR
Inlet-ø Suction: AS40
Outlet-ø Pressure: AS30
Weight*: 14 kg

*Setup with bracket and pto protection

Altek - Model P70 -Piston Diaphragm Pump

Options

Properties

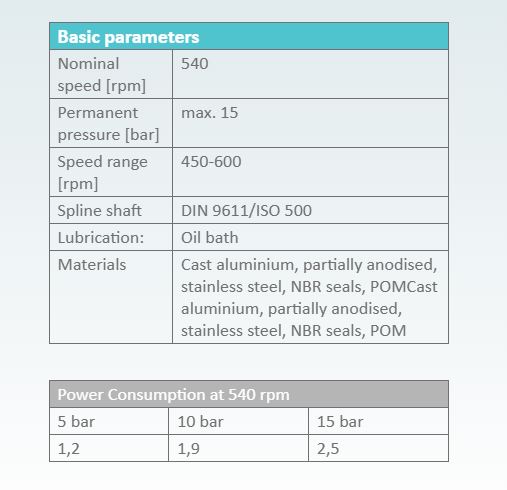

Basic parameters
