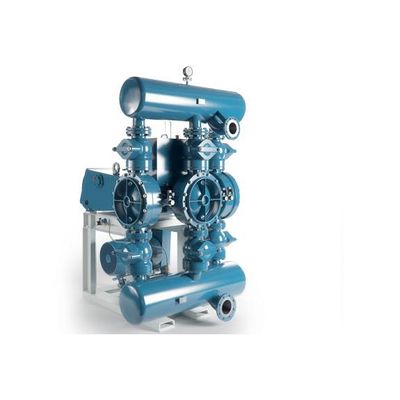

Josef-Emmerich - Model TKM Series -Piston Diaphragm Pump

Constructional features

• electrically driven modular piston diaphragm pump
• pump head made of various metal materials
• pulsation dampening by diaphragm pulsation dampeners in suction and discharge line; alternatively a pulsation dampening by means of air vessels is possible.
• double diaphragm
• inspection openings for diaphragm and valves on demand
• internal adjustment of pressure and quantity in dependence of the discharge pressure in the field of filter press feeding
• adjustment by means of frequency converter on demand

Materials

• cast-iron
• cast-iron rubber-lined
• various stainless steel

Capacities

• up to 400 m³/h

Pressure

• 1,6 MPa (16 bar) for higher pressures, look here: high pressure HD

Temperature of pumped material

• up to 100°C as standard design, higher temperatures on demand

Field of application

• Pumping of abrasive and aggressive materials. Very gentle pumping of materials sensitive to shear.
