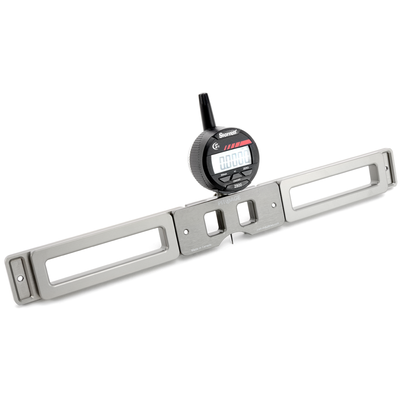

Jireh Industries - Pit Gage for Manual Surface Inspection
The Pit Gage from Jireh Industries is a high-precision tool designed for manual inspection of surface variations in pipes, tanks, vessels, and other structures. It features a rotating digital display and comes in multiple configuration lengths to meet various inspection requirements. The standard kit includes two or four non-magnetic extension arms, but optional magnetic arms can be added for mounting on ferrous surfaces. Components include a digital indicator with a range of 0-25 mm and a resolution of 0.01 mm, a center base for mounting, indicator tips, extension arms, and a blind side base for one-sided pit depth measurements in limited-access applications. The Pit Gage operates in environments ranging from -10°C to 50°C and is water-resistant with an IP67 rating. Batteries are included, and all parts come in a rugged carrying case for durability and convenience.
Measure surface variations with precision and ease. Offering a rotating digital display and multiple configuration lengths, the PIT GAGE is the essential tool for manual pit inspection. Kits come standard with two or four non-magnetic extension arms. Optional magnetic arms (purchased separately) can be added to allow the Gage to be mounted to a ferrous scan surface, even upside down.
- Digital indicator (batteries included)
- Centre base
- Blind side base
- Non-magnetic Extension arms (2 or 4 arm kit) x2
- Indicator tip x2
- Lithium coin cell battery x2
- Rugged carrying case
- User manual
DIGITAL INDICATOR
The easy readability and rotating face of the digital indicator ensures accurate readings, even when up-side-down.
CENTRE BASE
The standard mounting apparatus for the digital indicator.
INDICATOR TIP
The precise measurement point of the tool. A spare indicator tip is included with this kit.
EXTENSION ARMS
Extend the length of the PIT GAGE with additional non-magnetic extension arms.
BLIND SIDE BASE
Use the blind side base to take one-sided pit depth measurements in limited access applications (flanges, elbows, large weld caps, etc.).
MAGNETIC ARMS
Freedom to scan anywhere, magnetic arms (purchased separately) combined with the rotating digital indicator mean inverted scanning is a snap.
GENERAL
Digital Indicator, Range: 0 – 25 mm (0 – 1 in)
Digital Indicator, Resolution: 0.01 mm (0.0005 in)
Digital Indicator, Stem Diameter: 9.52 mm (.375 in)
Battery Requirements: CR2032 lithium coin cell x2 (included)
SIZE & WEIGHT
Centre Base, Length: 11.56 cm (4.55 in)
Blind Side Base, Length: 9.53 cm (3.75 in)
Extension Arm, Length: 17.59 cm (6.93 in)
Pit Gage, Height: 15.04 cm cm (5.92 in)
Pit Gage, Width: 5.81 cm (2.29 in)
Shipping weight (2 arm kit): 1.17 kg (2.6 lb)
Shipping weight (4 arm kit): 1.54 kg (3.4 lb)
INDICATOR TIP
Diameter: 0.914 mm (0.036 in)
ENVIRONMENTAL SPECIFICATIONS
Operating Environment: -10° C (14° F) to 50° C (122° F)
Environmental Sealing: Waterproof (IP67)
