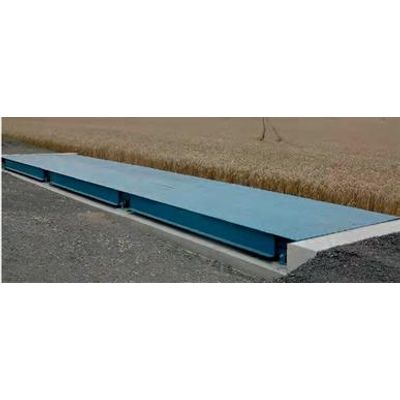

Weighing Engineering - Model NT31 -Pit Pit-Less Mounted Weighbridge

Pit-pit less. One of our older design. All steel platform is divided in separate modules which are easily bolted together on site.

Most popular related searches

Overall height: 330-420 mm
Type: pit-pit less
Driving surface: durbar
Dimensions: from 6 to 36m (other dimensions on request)
Capacities: 100-120t (other capacities on request)
Structure: - Modular Platform Design with possibility to extend by additional modules

IPE profiles grid design
Removable cover plates above each loadcell
All length of the weighbridge in the middle there is a removable middle cover to access the pit from the top.

Type of loadcells: Flintec RC 3 30t (optionally other brand loadcells on request)
Loadcells buffering system: Adequate lateral and longitudinal bumper arrangement without the use of mechanical constrainer, check/tie rods, yolk
Type of crane for installation: Any 3t crane
Transportation: By normal TIR truck or sea container
Below options available on request
- Side rails option
- Hot galvanization
- Weighing terminal
- Factory pre-mounted loadcells option. Only with model NT 31-3 which is the same model as NT 31 but all modules are 3 m wide. Needs a special truck for transportation. Cannot be carried by sea container.
