Mainco Rohrsysteme GmbH & Co. KG
Maincor - Plain Pipe
The subsequent insertion of plain pipes into protective pipes on the construction site is very labour- and cost-intensive, especially for longer pipe runs. That is why more and more users are turning to prefabricated products to increase productivity on the construction site. MAINCOR mechanically pulls the line pipe into a protective pipe and saves the customer a complete work step during installation and thus time and costs. With the pipe-in-pipe service, pipes up to a length of 50 metres can be assembled at MAINCOR.
Most popular related searches
drinking water pipe
water piping
water pipe
drinking water
mechanically lined pipe
PE pipe
pipe lining
OEM water
Materials

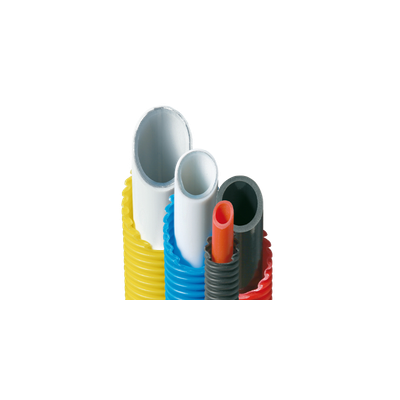

- PE protective pipe
- Internal smooth-bore pipe made of PE-RT/Alu/PE-RT
Dimensions
- 16 mm x 2,0 mm
- 20 mm x 2,25 mm
- 16 mm x 2,2 mm
- 20 mm x 2,8 mm
- other dimensions upon request
- Continuous load -15°C to 90°C
- Short-term load up to 120°C
- Application class (ISO10508): 1,2 / 10bar
- MADE IN GERMANY
