Konz - Plain Wave Square Stainless Steel Filter Mesh

These stainless-steel filters for liquids or compressed air offer an absolute retention rating in a wide range of filtration degrees.

KONZ provides stainless steel filter mesh in standard and custom sizes, so it’s available for you to customize filter mesh in different sizes. The size and distribution of the holes are decided by selecting different wire diameters, aperture sizes, mesh layers, and weaving methods of the wire mesh.

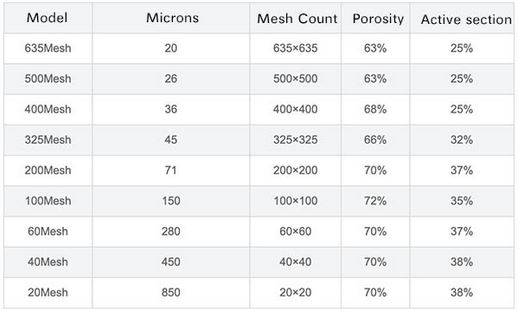

We have different wave patterns of stainless steel meshs with different microns. Below are some specifications of the products.

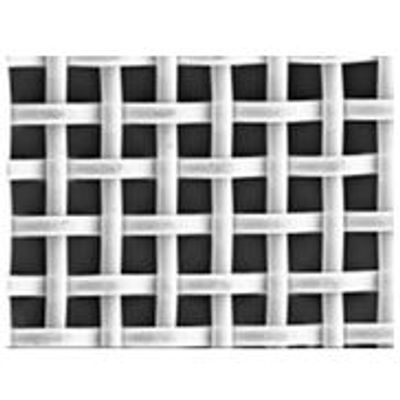

Compared with the dense mesh, the plain wire square mesh has a gap between the woven meshes, which can allow the liquid to pass through smoothly. Low resistance and high recoil effect are two characteristics of plain wire mesh. The square hole mesh can be used in a dirt environment with a small pressure difference, and it can be used in conjunction with the support mesh to achieve the application effect of backwashing.

Stainless steel Mesh filter elements have the great advantage they can be regenerated by ultrasonic bath or backwashing the system. After regeneration, the filter will be ready for use again.

SS Mesh filters are very robust filters and can offer high temperature resistance and high differential pressure tolerances.

KONZ stainless steel filter mesh, with different patterns, can be applied in a wide range of both domestic and industrial fields, such as food and beverage, chemical and petrochemical industry, pharmaceutical industry, water treatment.

Stainless steel mesh filters are usable in food and beverage applications, and are additionally often used for particle retention in cosmetic, chemical, water treatment and syrup filtration. Many more applications apply.
