Biotal - Model 10 -Plan of Water Treatment Plant

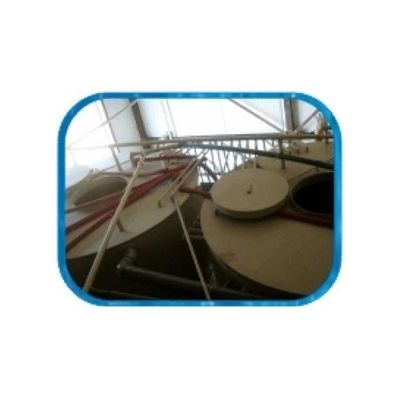

The Plant BIOTAL-7...100 includes few containers, which form three separated zone of biological prufication (SBR reactor).Such a constructive decision was taken for the sake of convenience in transporting and mounting the water treatment system. When Biotal Plant operates as settling capacity, an additional plastic ferro-concrete container( d-1,9m) is installed.
Most popular related searches
water treatment plant
water treatment
water tank cleaning
water tank
SBR reactor
water disinfection
sewage water
water purification
water treatment system
waste disinfection
Plan of Water Treatment Plant “ВIOТАL” for deep biological purification of waste waters: capacity 10 m3/24-hour period
1-2 - reactor SBR 1, 2; 3 - reactor SBR 3; 4 - accumulator - regulator for purified waste water (tank for clean water) /=3 m3; 5 - aerobic stabilizer (tank for surplus sediment) V=5 m3 ; 6 - treated waste waters disinfecting (by request); 7 - air-compressors ; 8 - buffer tank for waste waters in case of electrical blackout V=10 m3 ; 9 - outflow of biological purified and disinfected waste waters ; 10 - stainless steel grid for large wastes ; 11 - ventilation; 12 - pump for supply sewage water in SBR 1,2 ; 13 - panel with collectors; 14- inflow of waste waters ; 15 - sediment waters ; 16 - aerators; 17- pumping sediments from clean water tank; 18 - foundation for air-compressors; 19 - stainless steel grid for small wastes; 20 - installations` mouths; 21 - panel for treatment process controlled by a Mitsubishi controller (Japan); 22 - filter for additional cleaning ; (in case of need and by request);
