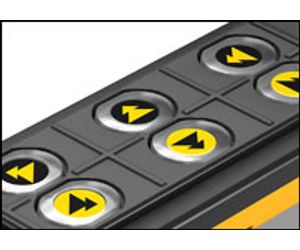

Planar - Model C1 -Push Button Transmitter

• Frequency band EU: 434,050 – 434,750 Mhz 866 – 870 MHz
• Frequency band USA: 433,100 – 434,750 MHz
• RF output: < or = 10 mW
• Typical operating range: 100 – 300 m
• Antenna: integrated
• Response time of control command: 15 ms
• SMJ-Technology ➊
• Advance alert "battery empty": 15 minutes
• Datafeedback: optional

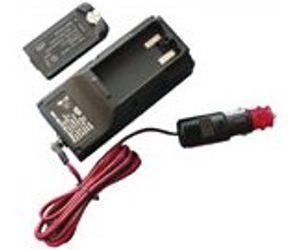

• 2 x AA Mignon
• Battery: NiMH / 1900 mAh / 1.2 V
• Battery: 1,5 V
• Operating time: 40 hours

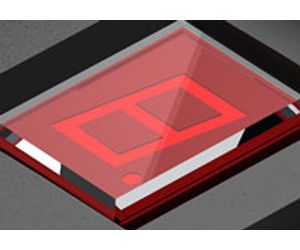

Data feedback

• range
• Transmitter signal strength
• Status of the function
• Customized data feedback information and logos on request illustratable

LBT frequency search
When switching on or when switching the frequency, a check is made to determine whether the frequency channel used is reserved by another transmitter. If this is the case, the next frequency channel is checked until it is ensured that the transmitter can operate without faults.
