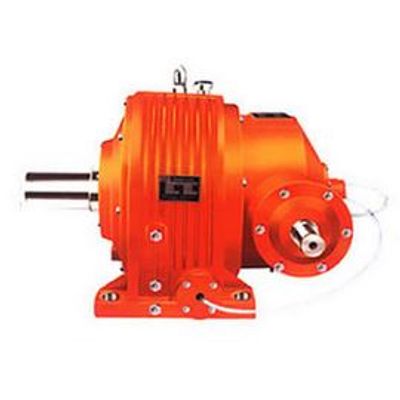

Starred-River - Model NGW-S Series -Planetary Gear Reducer
NGW-S series planetary gear reducer is a combination of spiral bevel gear transmission and planetary gear transmission, including two series (S42-S122), three stages (S73-S123) two series of NGW-S planetary gear reducer The design basis of this product is JB3723-84. It is mainly suitable for general mechanical equipments in metallurgy, mining and overweight transport. The maximum speed of the high-speed shaft does not exceed 1500r/min; the peripheral speed of the gear does not exceed 13m/s; the working environment temperature is -40℃-45℃. Cooling measures can be taken to run in both forward and reverse directions. (Forward, clockwise is the preferred direction)
Most popular related searches
- Compact structure, large transmission power and high carrying capacity
- High transmission efficiency
- Large transmission ratio
- Various types of assembly, multi-faceted installation, wide applicability
- The material, gear precision and bearing capacity are at the advanced level among similar products.
Equipment method:
- Foot installment,flange installment
- Big power can be equipped to complete the capacity of heavy bearing.
Model:

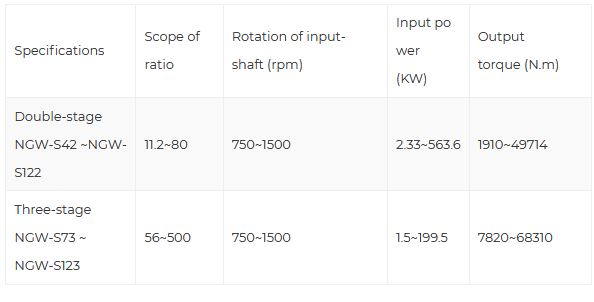

- NGW-S42,NGW-S52,NGW-S62,NGW-S72,NGW-S82,NGW-S92,NGW-S102,NGW-S112,NGW-S122
- NGW-S73,NGW-S83,NGW-S93,NGW-S103,NGW-S113,NGW-S123
- Location:China
- Business Type:Manufacturer, Exporter
- Brands:STARRED-RIVER
- Certificate: WCS ISO9001
- Terms of payment and delivery:Contract shall prevail
- Minimum order quantity: 1 Set
- Price:Consultation
- Packing details: Box
