Plastic Extrusion Equipment

The technology benefits:

• Large input volumes and thus excellent feeding characteristic
• High melt pressure build-up and maximum pressure stability, thus removing the need for a melt pump in most cases
• Large shaft diameters allow for high torque
• Easy removal of the screw via the rear of the extruder
• Excellent homogenization characteristics
• Excellent feeding behavior guarantees a short melt retention time in the extruder at low melt temperature
• Extremely low specific energy consumption

Individually configurable

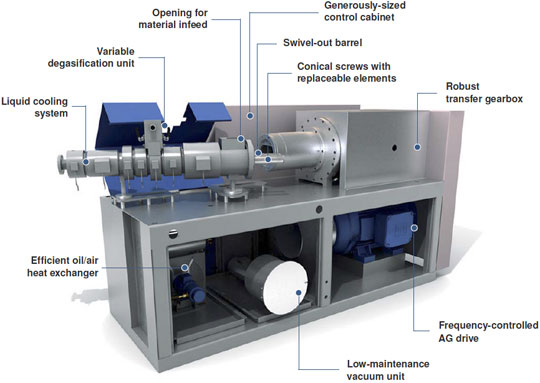

The screw assembly of the MAS compounder consists of a feeder and an extractor screw. Each of them is manufactured from one piece and available in a number of different pitches and number of starts. The mixing and shearing parts are customized to reflect the buyer’s individual requirements. The cylinder zones are equipped with heating shells and liquid cooling. The three-part cylinder can also be modified to match customer requirements. (with/without de-gasification, position of de-gasifying aperture etc.).

The mixing and plasticizing capacity is set by replacing the screw elements. Due to the conical design, an extremely fast screw changeover is possible. The downstream equipment remains in situ, the cylinder is swiveled out and the screws can be pulled out to the rear without further tools.

Compact, robust, durable

Generous axis spacing ensures a large intake volume and thus guarantees perfect feeding performance. Shaft diameters are dimensioned accordingly, allowing the use of robust thrust bearings and thus transmission of high torque.

Best quality in PET extrusion

The MAS extruder is perfect for processing A PET, G PET and GAG PET, both for re-pelletizing and for direct extrusion to products. The large aperture in the conical extruder supports feeding of both PET grinding stock (e.g. from PET bottles and preform) and of ground cast or BOPET foils. There is no need to pre-crystallize or pre-dry the PET.

As the extruder’s intake volume is significantly greater than the discharge volume, an extremely high screw filling level is achieved. This helps to achieve high output values at slow screw speeds and at a correspondingly low melt temperature. This results in excellent color values and lowest possible IV loss. The low thermal load, accompanied by very low specific energy consumption (≤ 0.22 kWh/kg) thus allows for highest quality extremely economically.

Direct extrusion of WPC / PPC / NFC

Due to the conical design and the resulting excellent pressure stability of the extruder, process reliability in direct extrusion of WPC/PPC and NFC profiles is ensured. Extruded WPC/PPC/NFC profiles with a wood, paper or fiber content of up to 80% and at the same time excellent mechanical characteristics are unique selling points in this market sector for MAS extruders.

Customer-specific solutions

MAS co-operates closely with IFA Tulln, the Institute for Natural Materials Technology at the University of Natural Resources and Applied Life Sciences, Vienna. Together, we develop holistic concepts including suitably stable process technology – from the initial idea to the development of product-specific recipes with profile extrusion trial runs and analysis of mechanical characteristics to prove the process and product are all undertaken.

Compounding

The conical, co-rotating MAS extruder offers process stability and economic compounding of plastics with very different characteristics wherever it is necessary to fulfill the strictest quality requirements. Especially in the following areas

• WPC (Wood Plastic Composites)
• PPC (Paper Plastic Composites)
• Admixing of CaC03 and talcum
• Admixing of glass fibers
• Admixing of dies / comparable additives

Thanks to its conical design with a substantially larger feed volume, the MAS extruder offers decisive advantages. From a process technology point of view, excellent results are achieved even when admixing/compounding high volumes of glass fibers (more than 50% supported) with a PE/PET or PP melt. A single admixing aperture is used to feed all materials. Complicated multiple dosing, which is typical for cylindrical designs, is totally unnecessary

Extrusion / Recycling

The conical co-rotating design of the MAS extruder supports a versatile range of applications. The MAS extruder is suitable for virtually any application in the extrusion sector:

• Recycling of polyolefins and technical plastics
• Recycling of plastics that are sensitive to temperatures and shearing
• Admixing of dies, additives such as CaCO3, talcum, etc.

The MAS extruder is perfectly suited for any application where high quality requirements and a variety of product requirements necessitate an individual solution.
