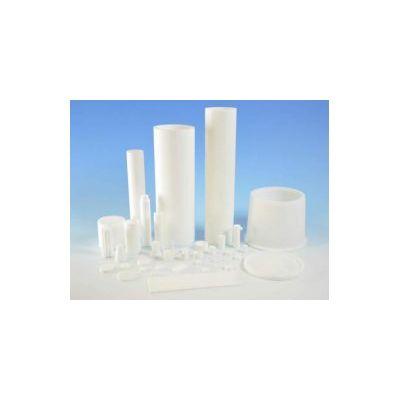

contec - Plastic Filtration Elements for Air and Gas Filtration

Task:

• Particle separation
• Water barrier

Advantages:

• Smooth surface, no migration of fibers
• Inexpensive (PE)
• Inert, FDA-compliant (PTFE)
• Excellent chemical resistance (PTFE)
• High inherent mechanical strength (PE/PTFE)
• Extremely water-repellent (PTFE)
• Partly regenerable (PE/PTFE)
• Self-sealing (PE/PTFE)

Filter ratings:

• PTFE: 2µm, 20µm
• PE: 5µm, 10µm, 20µm, 50µm, 100µm, 140µm

Material:
Symmetrical, porous filter tube (PE/PTFE)

Options:
With end caps

Technical Specifications:

• PTFE: -200°C up to + 250°C
• PE: 80°C max, 60°C continuous
